System Diagram

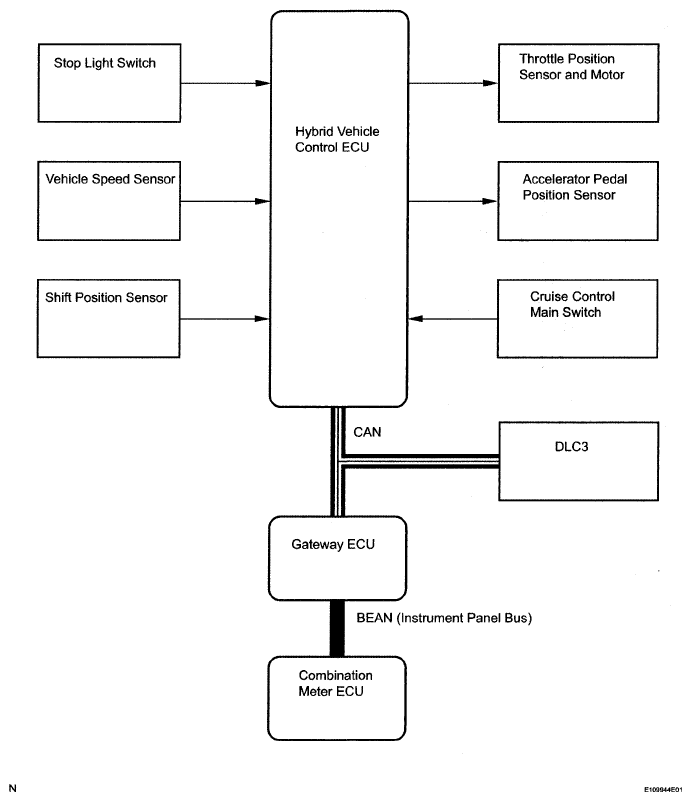

Fig 1: Cruise Control System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication table:

COMMUNICATION CHART

Sender ECU	Receiver ECU	Signal	Line
Hybrid Vehicle Control ECU	Combination Meter ECU	CRUISE indicator operation signal	CAN BEAN (Instrument Panel Bus)
