Laser Sensor Power Source Circuit: Wiring Diagram

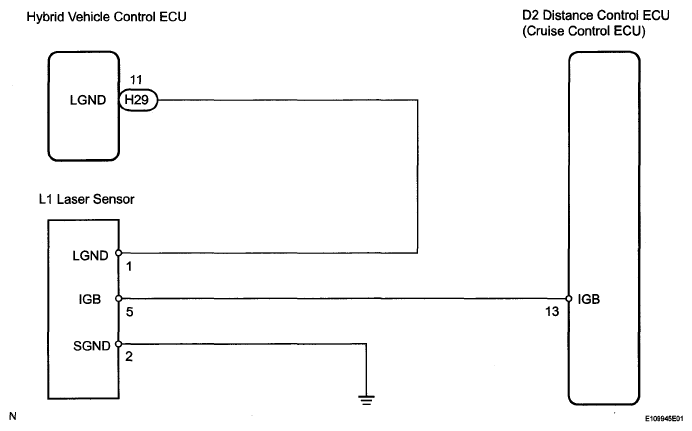

Fig 1: Wiring Diagram - Laser Sensor Power Source Circuit
G05279943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
