Display Signal Circuit between Navigation ECU and Multi-display: Wiring Diagram

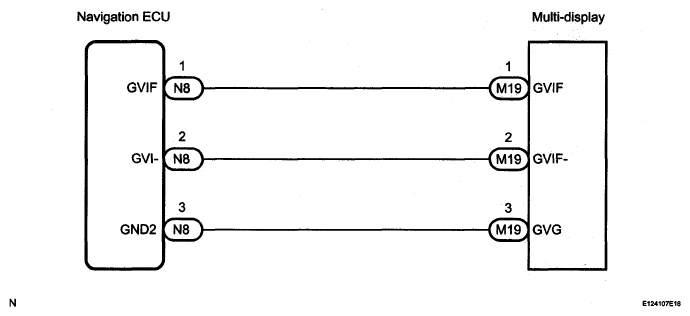

Fig 1: Display Signal Circuit - Wiring Diagram
G05280948Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
