DTC C0210/33 Rear Speed Sensor RH Circuit; DTC C0215/34 Rear Speed Sensor LH Circuit; DTC C1273/73 Low Output Signal of Rear Speed Sensor RH (Test Mode DTC); DTC C1274/74 Low Output Signal of Rear Speed Sensor LH (Test Mode DTC): Wiring Diagram

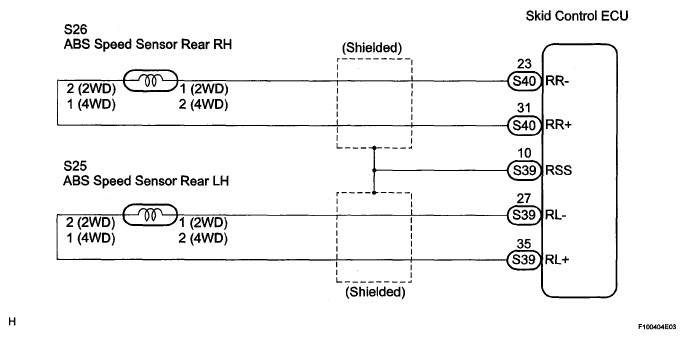

Fig 1: Rear Speed Sensor Circuit - Wiring Diagram

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
