DTC U0073/94 Control Module Communication Bus OFF; DTC U0123/62 Lost Communication with Yaw Rate Sensor Module; DTC U0124/95 Lost Communication with Lateral Acceleration Sensor Module; DTC U0126/63 Lost Communication with Steering Angle Sensor Module; DTC U0293/59 Communication Error from HV ECU: Wiring Diagram

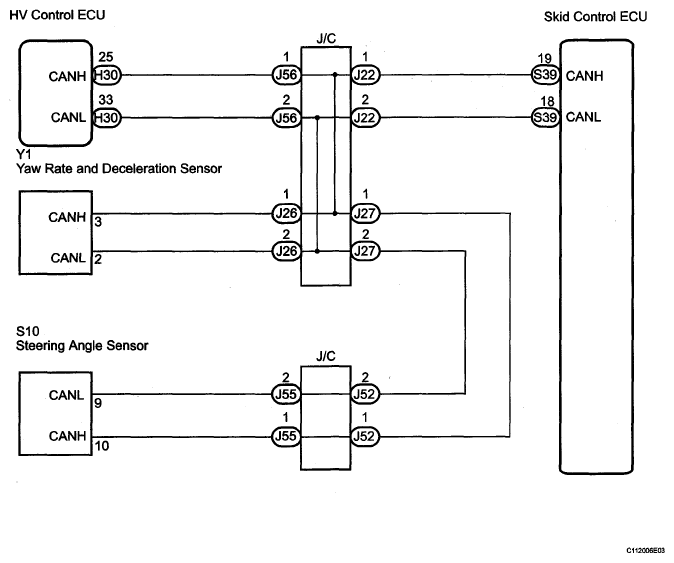

Fig 1: Control Module Communication Bus Off - Wiring Diagram

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
