Inspection Procedure
WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT FUSE (ACC, ECU-B2, ECU-IG1)
- Remove the ACC, ECU-IG1 fuses from the cowl side junction block LH.
- Remove the ECU-B2 fuse from the cowl side junction block RH.
- Measure the resistance of the fuses.
Standard resistance:
Below 1 Ω
- NG: REPLACE FUSE
- OK: GO TO NEXT STEP
- CHECK WIRE HARNESS (NETWORK GATEWAY ECU - BATTERY AND BODY GROUND)

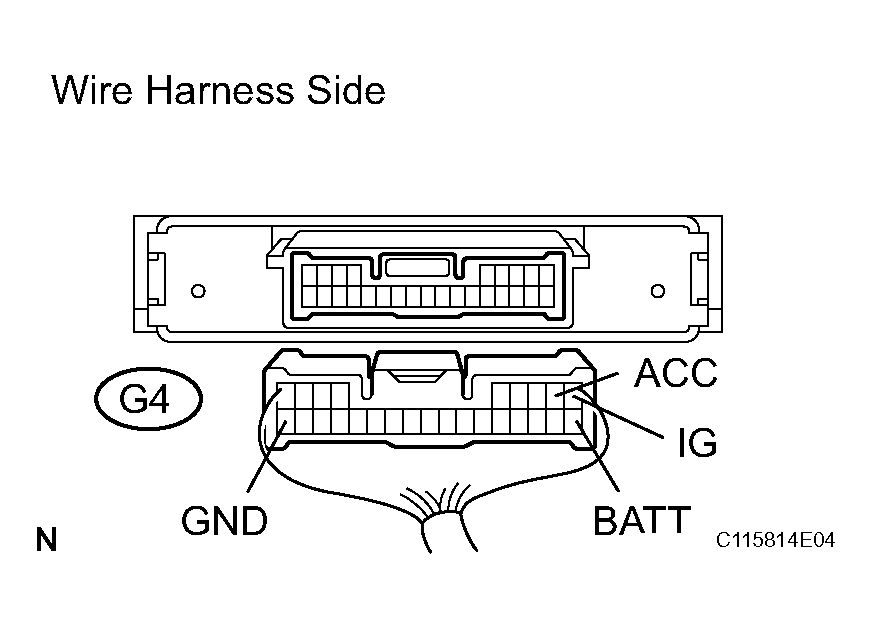

- Disconnect the G4 ECU connector.
- Measure the resistance of the wire harness side connector.
Standard resistance
NETWORK GATEWAY ECU - BATTERY AND BODY GROUND (RESISTANCE)Tester Connection Specified Condition G4-24 (GND) - Body ground Below 1 Ω - Measure the voltage of the wire harness side connector.
Standard voltage
NETWORK GATEWAY ECU - BATTERY AND BODY GROUND (VOLTAGE)Tester Connection Condition Specified Condition G4-10 (BATT) - G4-24 (GND) Always 10 to 14 V G4-2 (ACC) - G4-24 (GND) Ignition switch ACC 10 to 14 V G4-1 (IG) - G4-24 (GND) Ignition switch ON 10 to 14 V
- NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
- OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
