License Plate Light Assembly: Inspection
WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

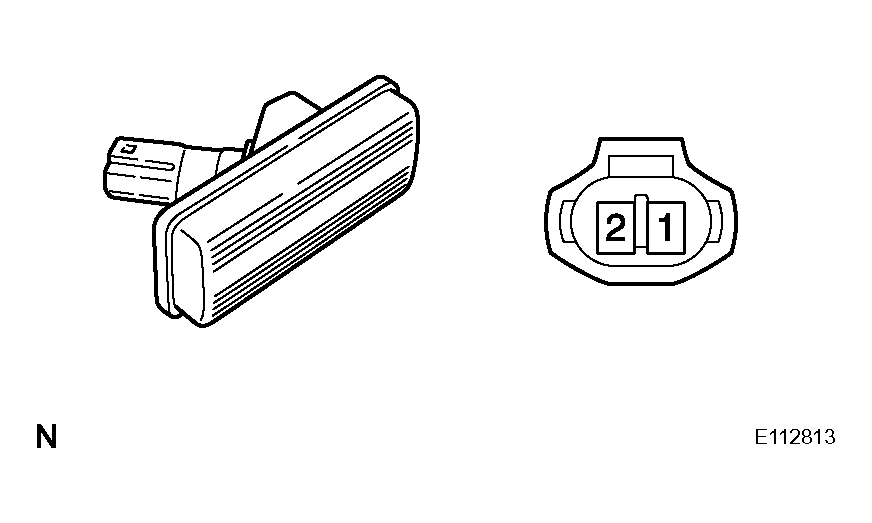

- INSPECT LICENSE PLATE LIGHT ASSEMBLY
- Measure the continuity of the light.
OK
LICENSE PLATE LIGHT
| Tester Connection |
Specified Condition |
| 1 - 2 |
Continuity |
If the result is not as specified, replace the light assembly.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
