On-Vehicle Inspection

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT HEADLIGHT CONTROL SWITCH

Measure the continuity of the switch.

HEADLIGHT CONTROL SWITCH

Tester Connection	Switch Position	Specified Condition
14 - 16	TAIL	Continuity
13 - 14 - 16	HEAD
12 - 16	AUTO
-	OFF	No continuity

If the result is not as specified, replace the headlight dimmer switch assembly.

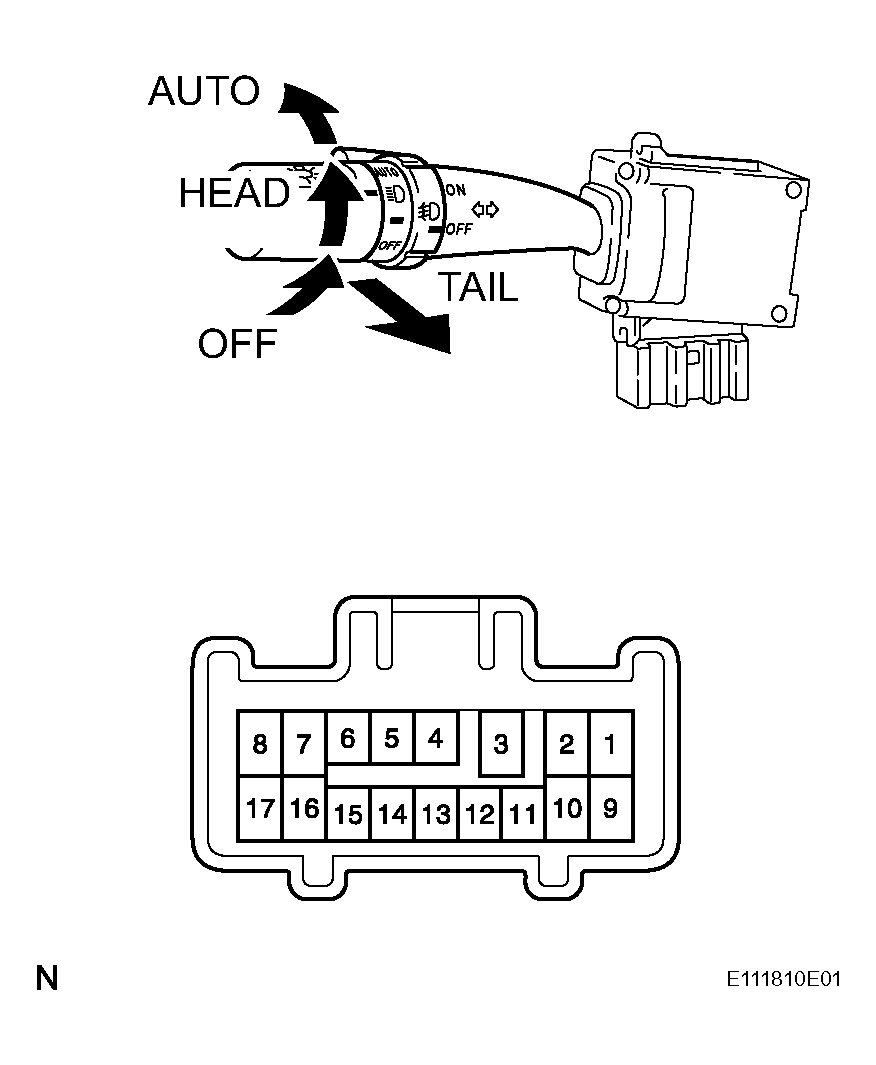

Fig 1: Inspecting Headlight Control Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT DAYTIME RUNNING LIGHT RELAY

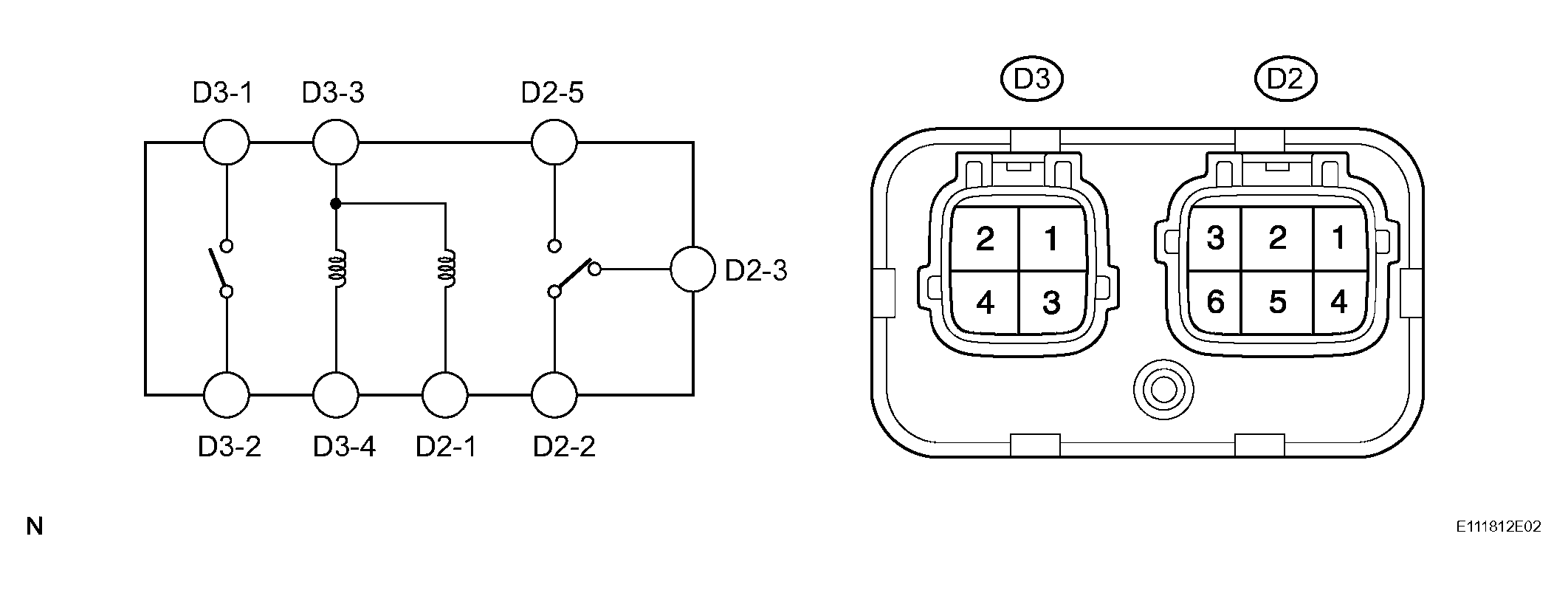

Fig 2: Inspecting Daytime Running Light Relay

Measure the continuity of the relay.

DAYTIME RUNNING LIGHT RELAY

Tester Connection	Condition	Specified Condition
D2-2 - D2-3	Always	Continuity
D2-2 - D2-5	Apply battery positive voltage between terminals D2-1 and D3-3
D3-1 - D3-2	Apply battery positive voltage between terminals D3-3 and D3-4

If the result is not as specified, replace the relay.
