DTC Check/Clear

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DTC
1. Connect the intelligent tester to the DLC3.

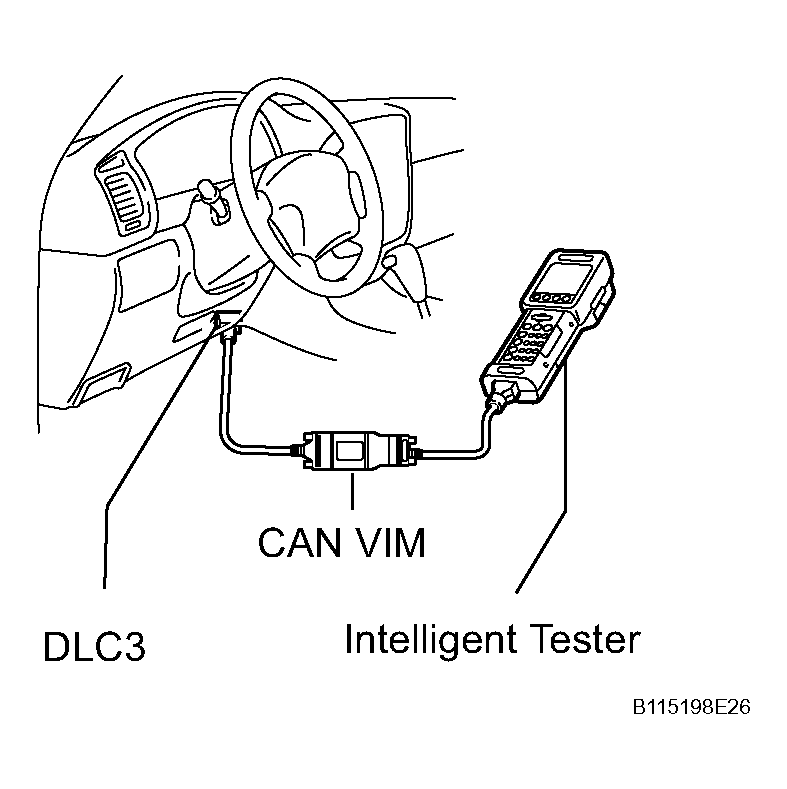

  Fig 1: Connecting Intelligent Tester To DLC3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the ignition switch ON.
3. Read the DTC by following the prompts on the tester screen.
  HINT:

  Refer to the intelligent tester operator's manual for further details.
CLEAR DTC
1. Connect the intelligent tester to the DLC3.
2. Turn the ignition switch ON.
3. Erase the DTC by following the directions on the tester screen.
  HINT:

  Refer to the intelligent tester operator's manual for further details.
