Steering Angle Sensor Communication Stop Mode: Wiring Diagram

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

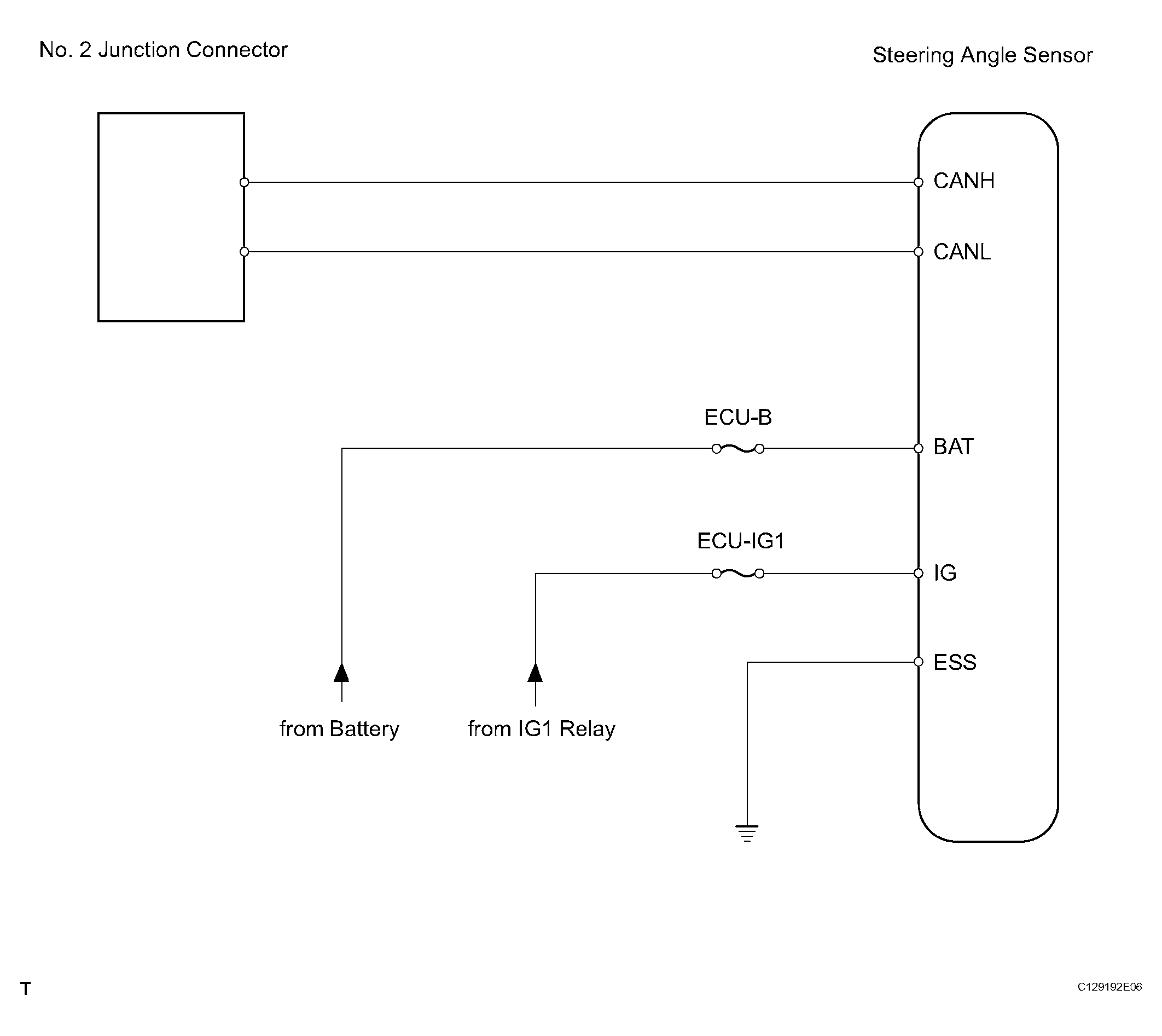

Fig 1: Steering Angle Sensor Communication Stop Mode - Wiring Diagram
G04492677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
