Cruise Control Main Switch: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL CRUISE CONTROL MAIN SWITCH
1. Install the switch with the 2 screws.
  Torque: 1.7 to 3.0 N*m (17.34 to 30.60 kgf*cm,

  15.04 to 26.55 in.*lbf)

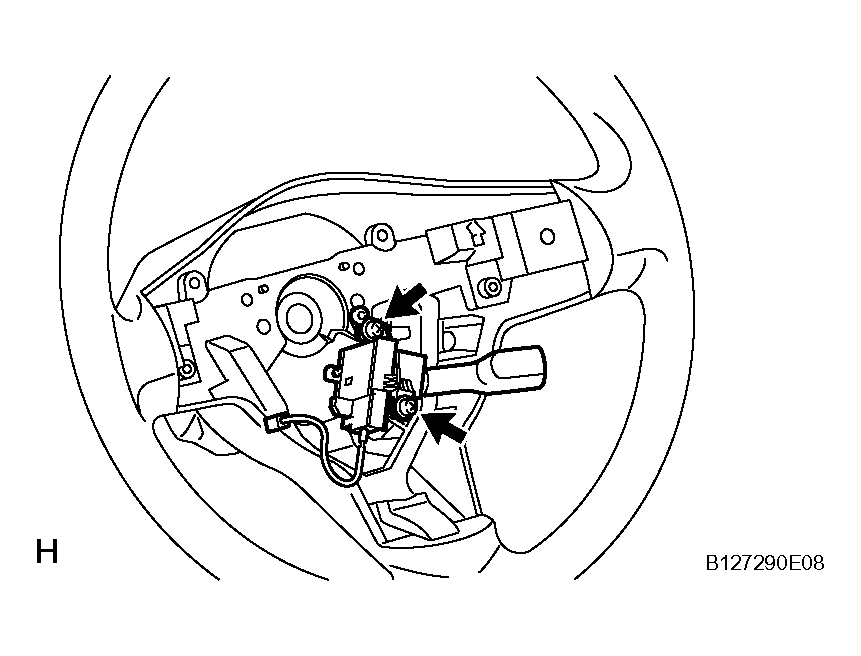

  Fig 1: Installing Cruise Control Main Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector.
INSTALL STEERING PAD ASSEMBLY (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CHECK SRS WARNING LIGHT
1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
