DESCRIPTION
The ECM controls the function of cruise control on this vehicle. Data of the cruise control or DTC can be read from the DLC3 of the vehicle. When trouble occurs with cruise control, check that the CRUISE main indicator does not come on but DTC inspection is performed. Therefore, when there seems to be a problem with the cruise control, use the intelligent tester (with CAN VIM) or SST to check and troubleshoot it.

CHECK DLC3

The ECM uses ISO 15765-4 for communication. The terminal arrangement of the DLC3 complies with SAE J1962 and matches the ISO 15765-4 format.

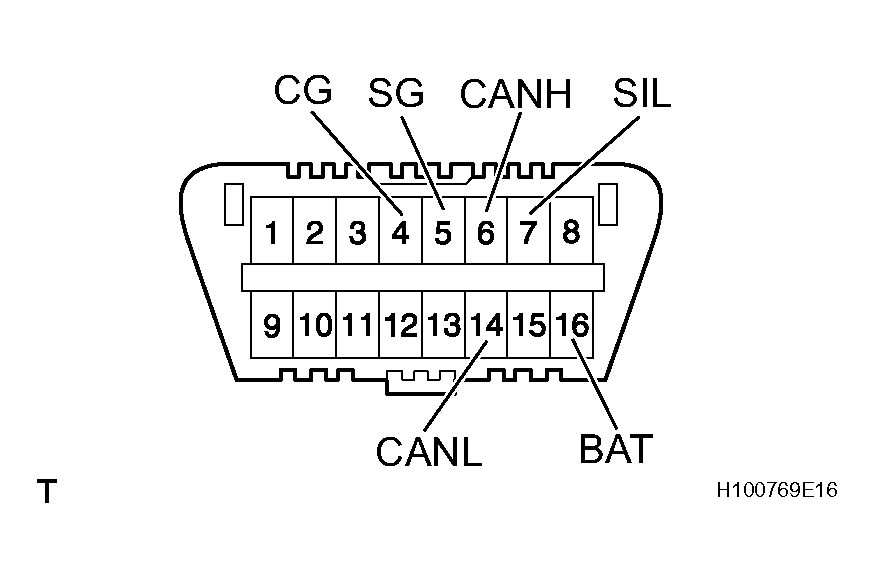

Fig 1: Identifying DLC3 Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TERMINAL DESCRIPTION AND SPECIFIED CONDITION (DLC3)

Symbols (Terminal No.)

Terminal Description

Condition

Specified Condition

SIL (7) - SG (5)

Bus '+' line

During transmission

Pulse generation

CG (4) - Body ground

Chassis ground

Always

Below 1 Ω

SG (5) - Body ground

Signal ground

Always

Below 1 Ω

BAT (16) - Body ground

Battery positive

Always

11 to 14 V

CANH (6) - CANL (14)

HIGH-level CAN bus line

Ignition switch OFF⁽¹⁾

54 to 69 Ω

CANH (6) - Body ground

HIGH-level CAN bus line

Ignition switch OFF⁽¹⁾

1 MΩ or higher

CANH (6) - CG (4)

HIGH-level CAN bus line

Ignition switch OFF⁽¹⁾

200 Ω or higher

CANL (14) - Body ground

LOW-level CAN bus line

Ignition switch OFF⁽¹⁾

1 MΩ or higher

CANL (6) - CG (4)

LOW-level CAN bus line

Ignition switch OFF⁽¹⁾

200 Ω or higher

⁽¹⁾	Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the ignition switch, other switches or doors.

If the result is not as specified, the DLC3 may have a malfunction. Repair or replace the harness and connector.

HINT:

Connect the cable of the intelligent tester (with CAN VIM) to the DLC3, turn the ignition switch ON and attempt to use the tester. If the display indicates that a communication error has occurred, there is a problem either with the vehicle or with the tester.

If communication is normal when the tester is connected to another vehicle, inspect the DLC3 of the original vehicle.
If communication is still not possible when the tester is connected to another vehicle, the problem may be in the tester itself. Consult the Service Department listed in the tester's instruction manual.

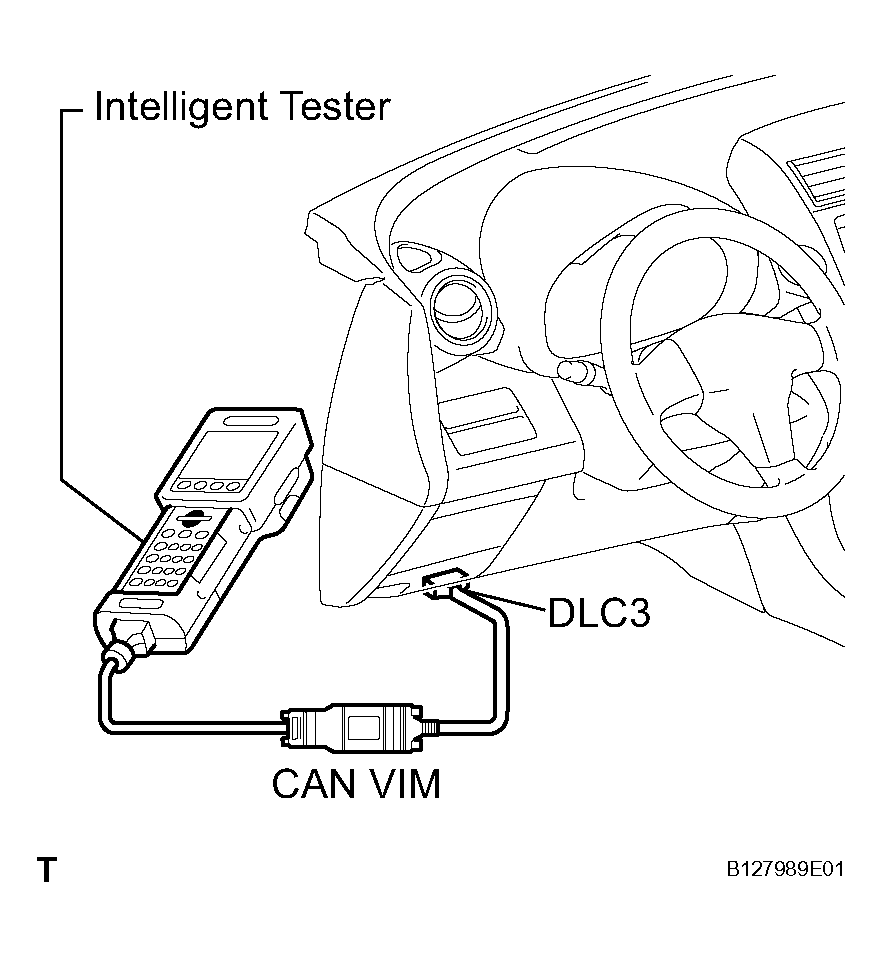

Fig 2: Connecting Intelligent Tester To DLC3
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CHECK INDICATOR
1. Turn the ignition switch ON.
2. Check that the CRUISE main indicator light illuminates when the cruise control main switch is turned ON, and that the indicator light goes off when the main switch is turned OFF.

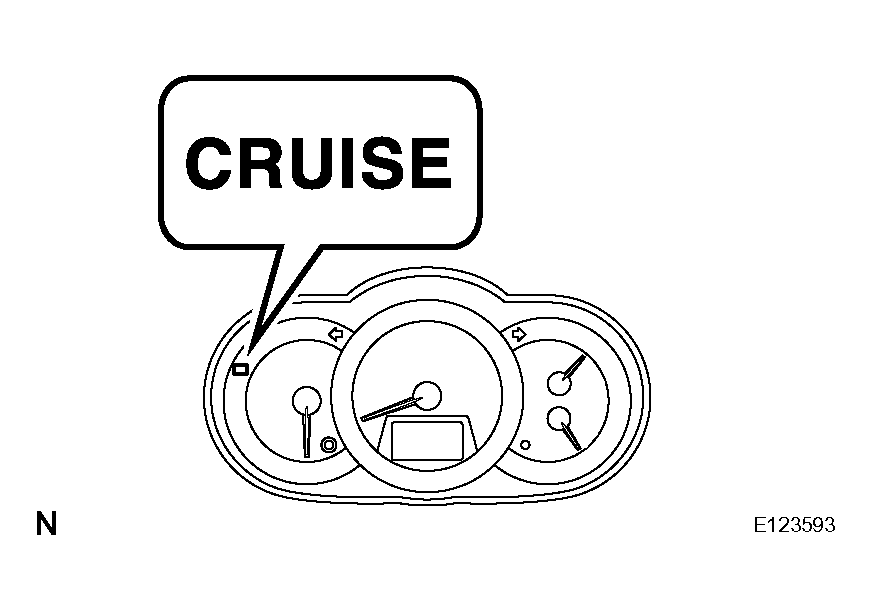

  Fig 3: Locating CRUISE Main Indicator Light
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:
  - If the indicator check result is not normal, proceed to troubleshooting for the combination meter section (see HOW TO PROCEED WITH TROUBLESHOOTING ).
  - If a malfunction occurs in the speed sensor or stop light switch, etc. during cruise control driving, the ECM activates the AUTO CANCEL of the cruise control and the CRUISE main indicator light blinks to inform the driver of a malfunction. At the same time, the malfunction is stored in memory as a diagnostic trouble code.

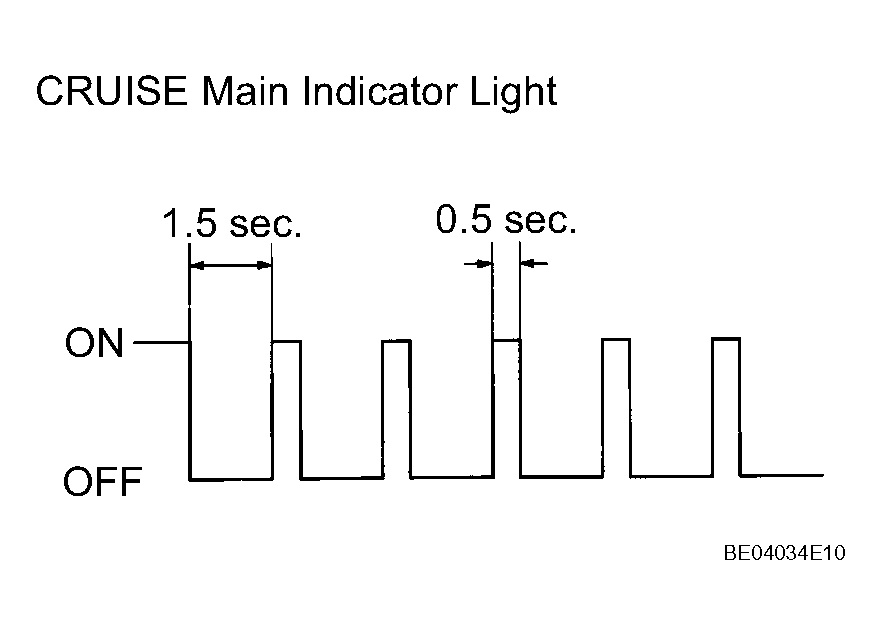

    Fig 4: CRUISE Main Indicator Light Illuminating Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
