Door Control Transmitter Module: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE TRANSMITTER HOUSING COVER
NOTE: Take extra care when handling these precision electronic components.
1. Twist the screwdriver in the direction of the arrow mark in the illustration, and open the transmitter housing cover.
  NOTE: Do not forcibly pry the cover.

  HINT:

  Tape the screwdriver tip before use.

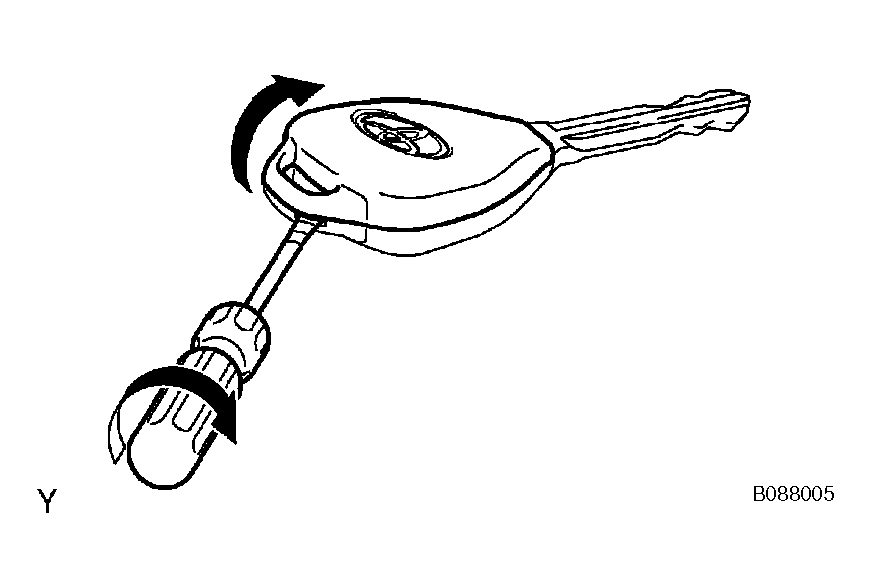

  Fig 1: Opening Transmitter Housing Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DOOR CONTROL TRANSMITTER MODULE

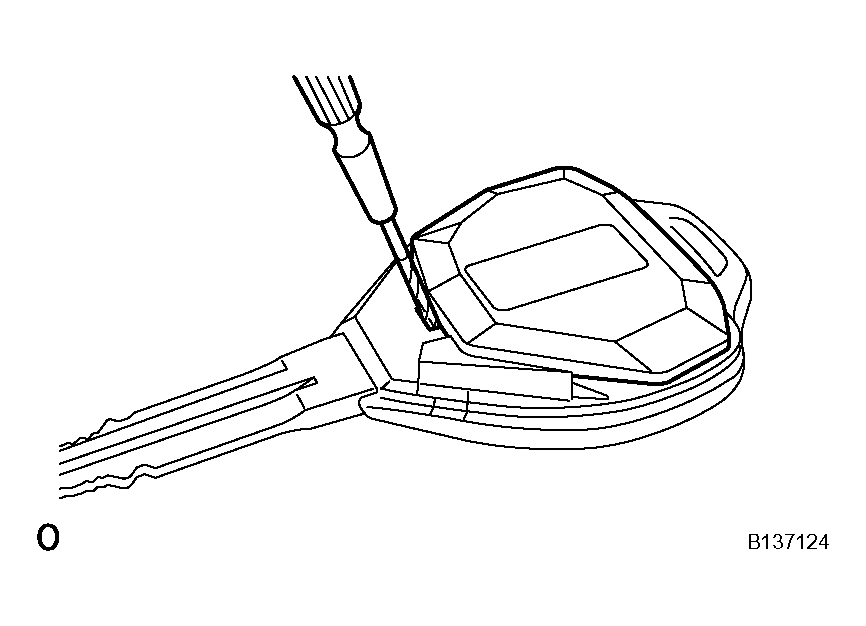

Fig 2: Removing Door Control Transmitter Module
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
