Fog Light Assembly: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH and LH sides.
The procedures listed below are for the LH side.

INSTALL FOG LIGHT ASSEMBLY
1. Install the fog light with the bolt.
2. Connect the connector.
INSTALL FRONT BUMPER COVER (See INSTALLATION )
INSTALL RADIATOR SUPPORT OPENING COVER (See INSTALLATION )
INSTALL FRONT FENDER LINER RH (See INSTALLATION )
INSTALL FRONT FENDER LINER LH (See INSTALLATION )
INSTALL CABLE TO NEGATIVE BATTERY TERMINAL

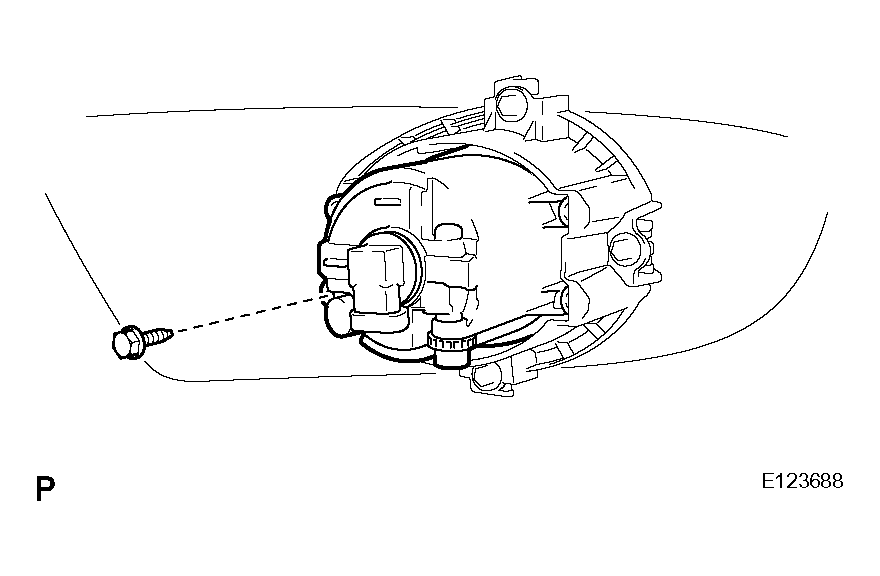

Fig 1: Installing Fog Light Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
