Fog Light Assembly: Reassembly

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH side and LH sides.
The procedures listed below are for the LH side.

INSTALL FOG LIGHT BULB
1. Turn the bulb in the direction indicated by the arrow to install it.

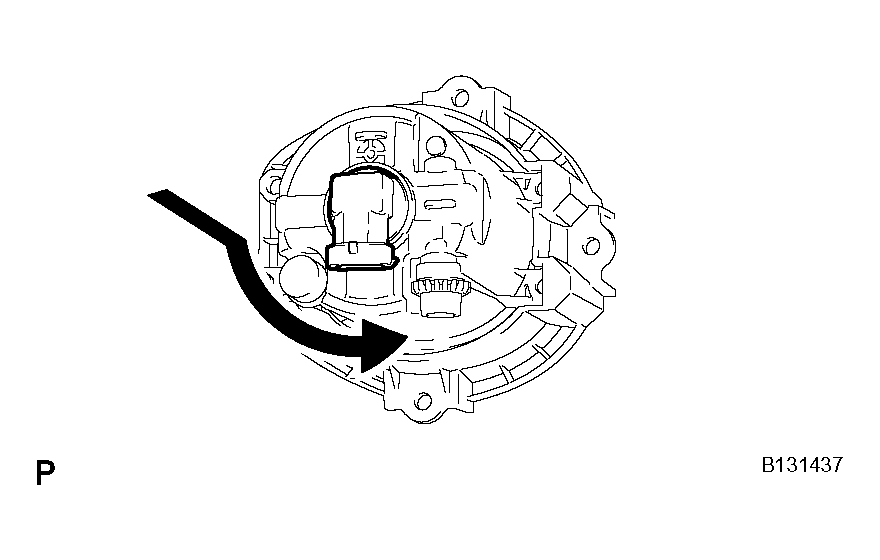

  Fig 1: Installing Fog Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
