Headlight Assembly: Disassembly

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH and LH sides.
The procedures listed below are for the LH side.

REMOVE NO. 1 HEADLIGHT BULB
1. Turn the bulb in the direction indicated by the arrow and pull to remove it.

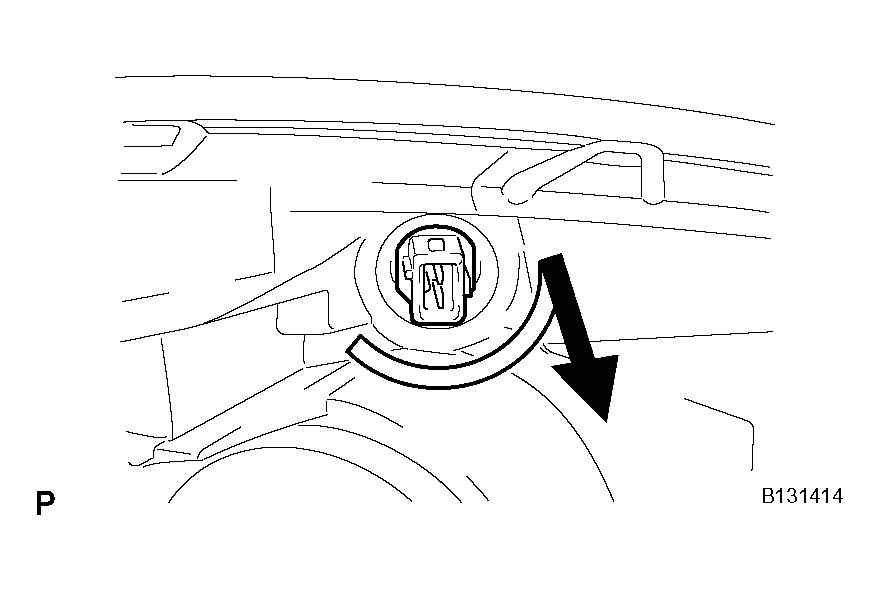

  Fig 1: Removing No. 1 Headlight Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 HEADLIGHT BULB
1. Turn the bulb in the direction indicated by the arrow and pull to remove it.

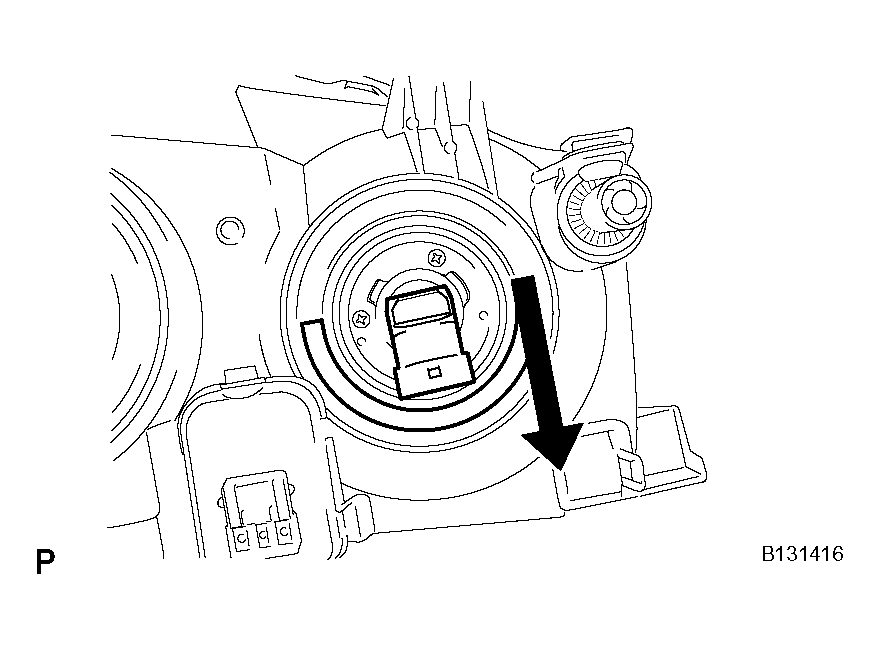

  Fig 2: Removing No. 2 Headlight Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CLEARANCE LIGHT BULB
1. Turn the bulb in the direction indicated by the arrow and pull to remove it.

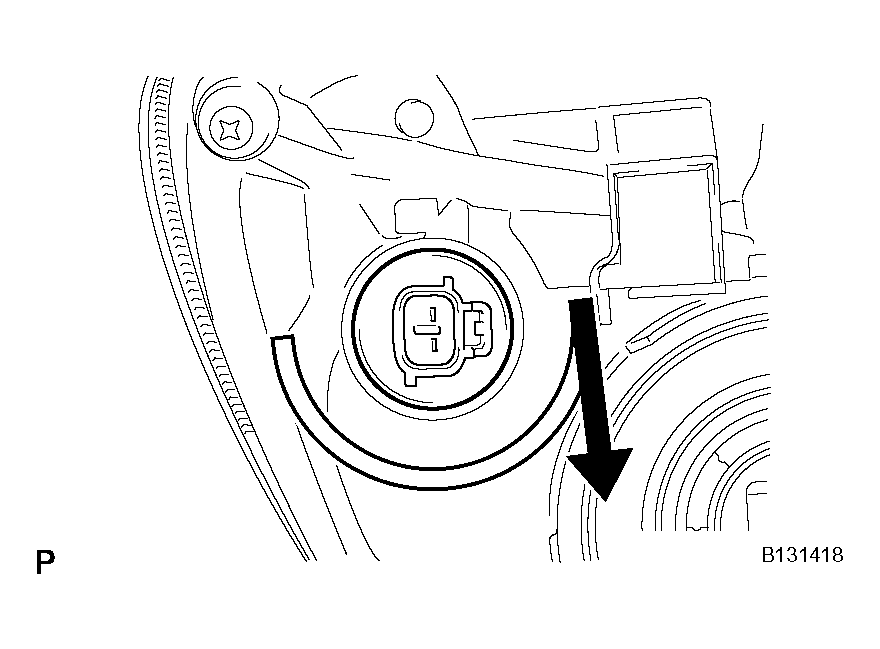

  Fig 3: Removing Clearance Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT TURN SIGNAL LIGHT BULB
1. Turn the bulb/socket unit in the direction indicated by the arrow and pull to remove it.
2. Remove the bulb from the socket.

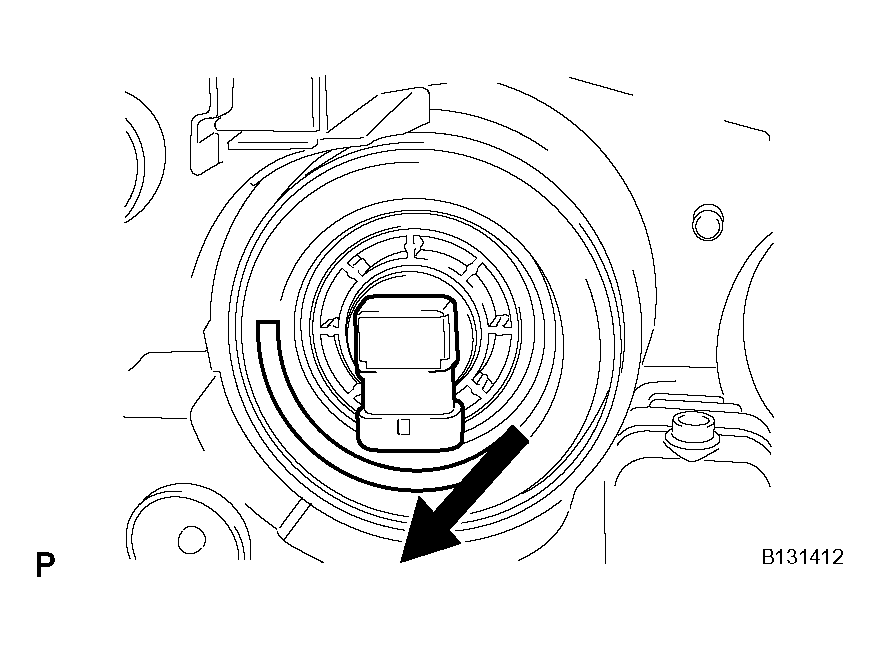

  Fig 4: Removing Bulb From Socket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
