Headlight Assembly: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH and LH sides.
The procedures listed below are for the LH side.

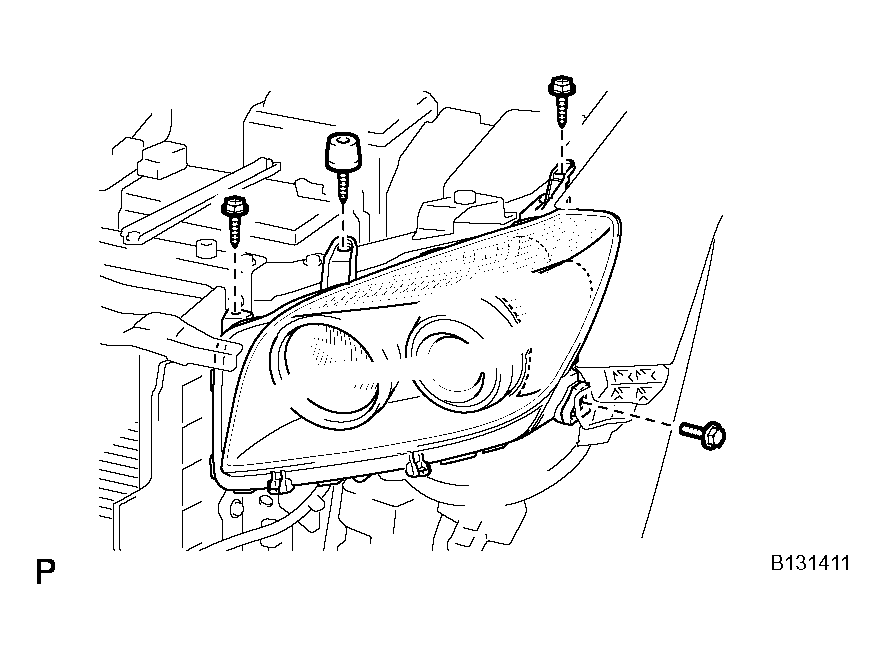

INSTALL HEADLIGHT ASSEMBLY LH
1. Connect the connectors with the headlight.
2. Install the 3 screws and bolt.
INSTALL FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY UPPER
1. Install the reinforcement with the 2 bolts.
2. Connect the 2 horns connectors.
INSTALL FRONT BUMPER COVER (See INSTALLATION )
INSTALL RADIATOR SUPPORT OPENING COVER (See INSTALLATION )
INSTALL FRONT FENDER LINER RH (See INSTALLATION )
INSTALL FRONT FENDER LINER LH (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
ADJUST HEADLIGHT AIMING
1. Adjust the headlight aiming (see ADJUSTMENT ).
