Headlight Assembly: Reassembly

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH and LH sides.
The procedures listed below are for the LH side.

INSTALL FRONT TURN SIGNAL LIGHT BULB
1. Install the bulb to the socket.
2. Insert the bulb/socket unit into the headlight.
3. Turn the bulb/socket unit in the direction indicated by the arrow to install it.

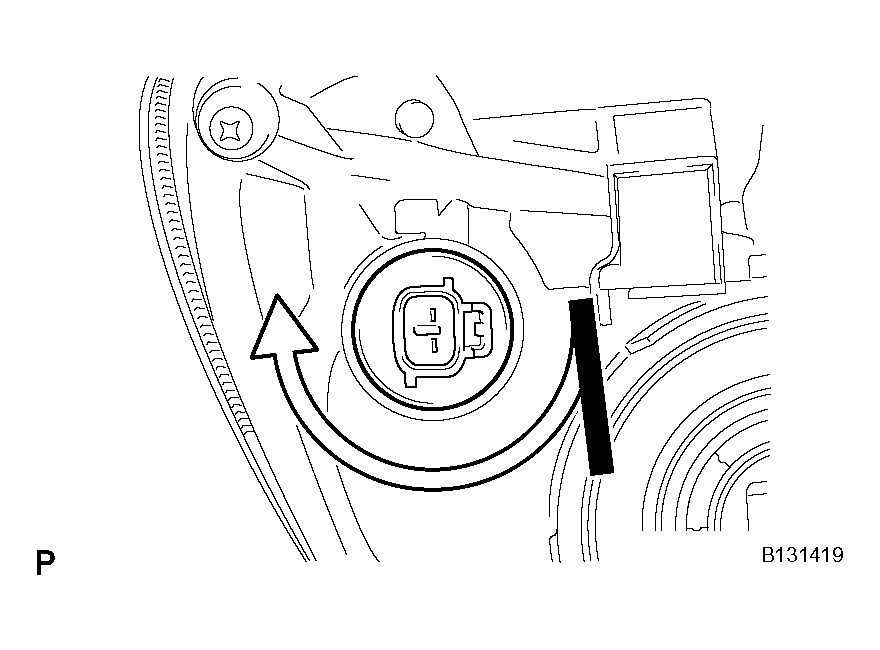

  Fig 1: Installing Front Turn Signal Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CLEARANCE LIGHT BULB
1. Insert the bulb into the headlight.
2. Turn the bulb in the direction indicated by the arrow to install it.

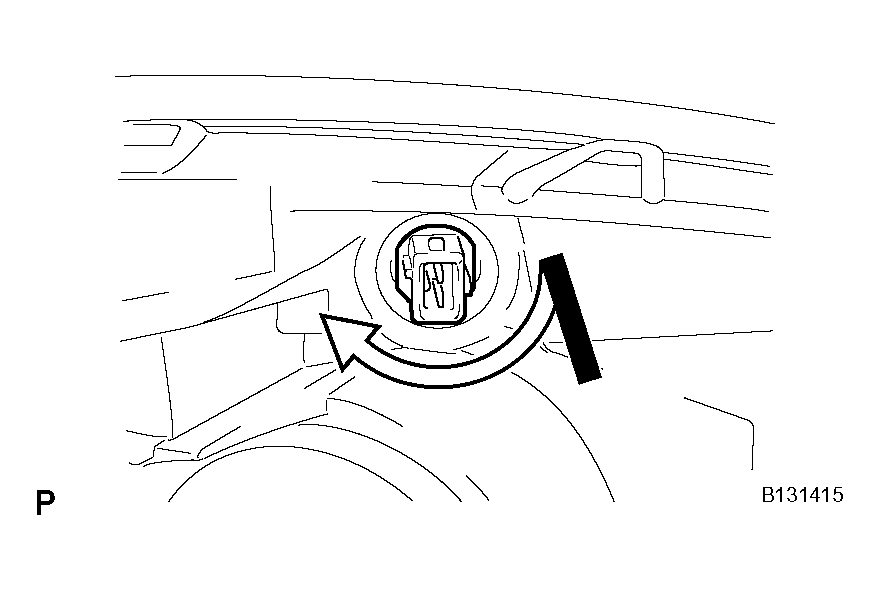

  Fig 2: Installing Clearance Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 HEADLIGHT BULB
1. Insert the bulb into the headlight.
2. Turn the bulb in the direction indicated by the arrow to install it.

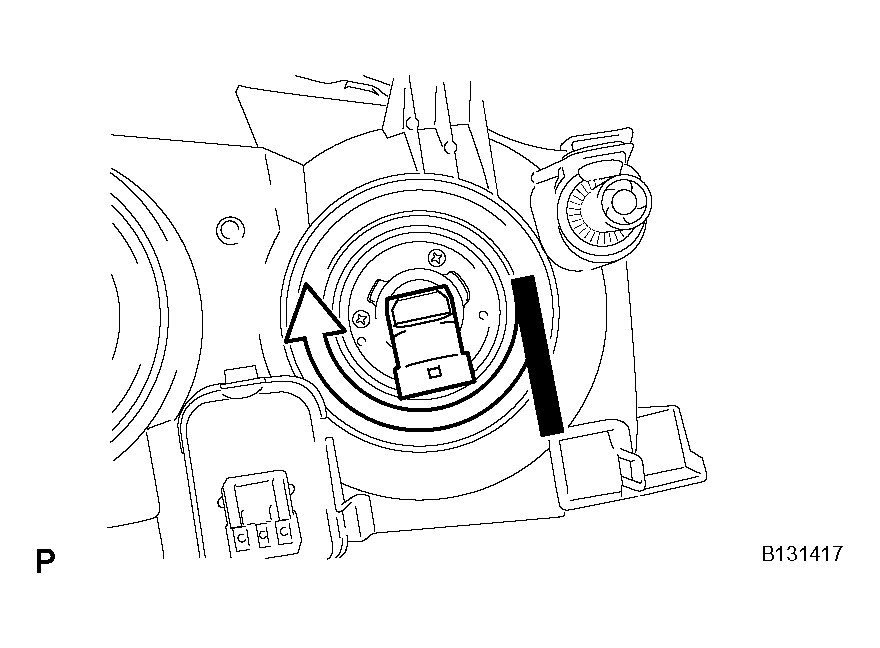

  Fig 3: Installing No. 2 Headlight Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 HEADLIGHT BULB
1. Insert the bulb into the headlight.
2. Turn the bulb in the direction indicated by the arrow to install it.

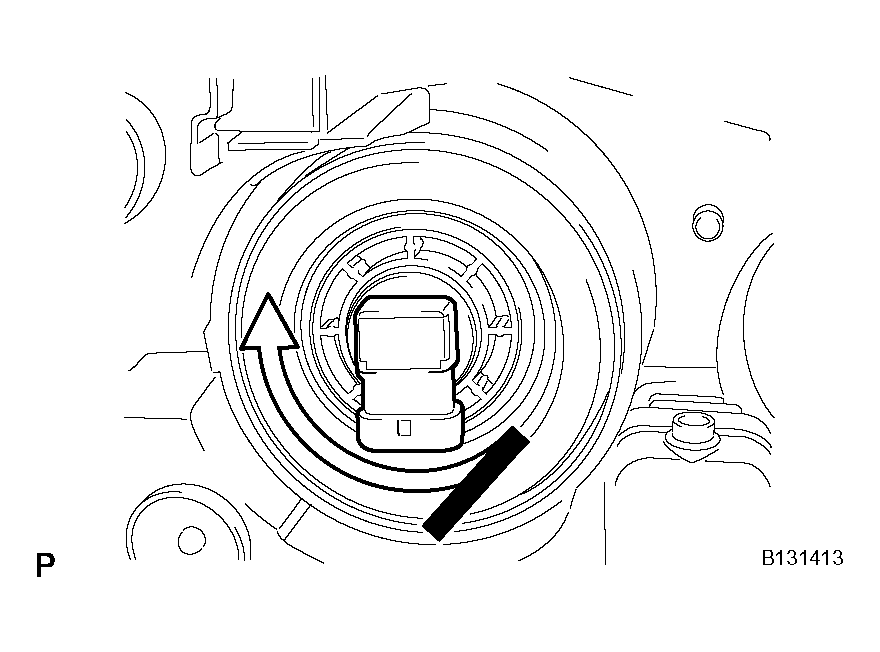

  Fig 4: Installing No. 1 Headlight Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
