High Mounted Stop Light Assembly: Installation
WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

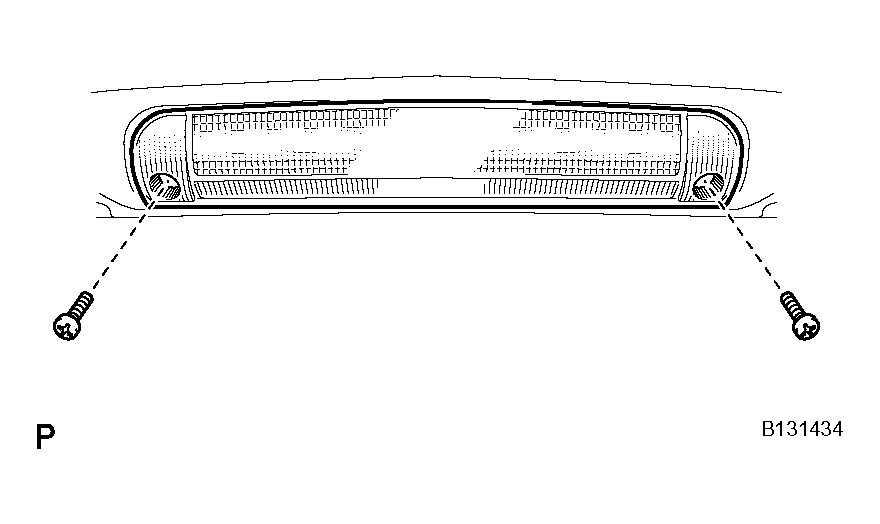

- INSTALL CENTER STOP LIGHT ASSEMBLY
- Install the center stop light with the 2 screws.
- Connect the connector.
- INSTALL BACK DOOR CENTER GARNISH (See REASSEMBLY )
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
