License Plate Light Assembly: Disassembly

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE LICENSE PLATE LIGHT BULB
    1. Turn the bulb/socket unit in the direction indicated by the arrow and pull to remove it.
    2. Remove the bulb from the socket.

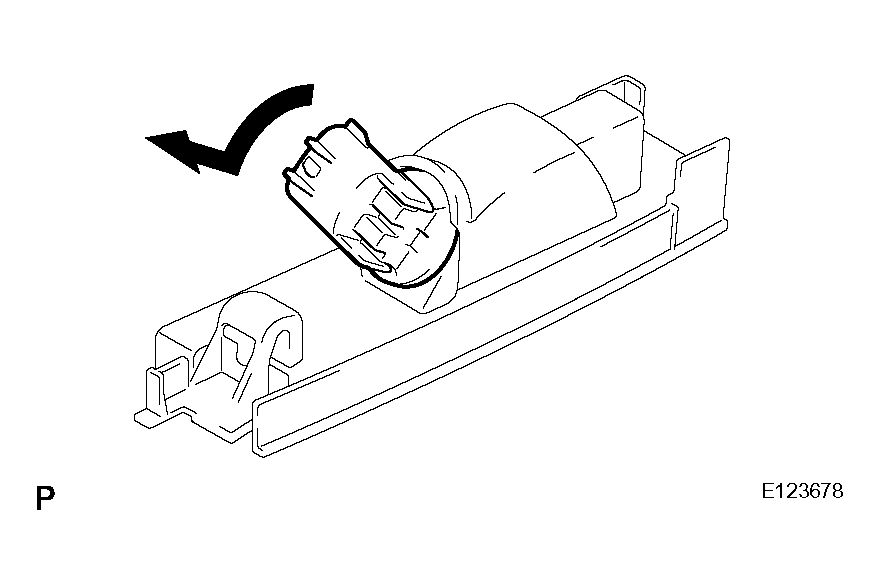

      Fig 1: Removing License Plate Light Bulb
      G04490849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
