Inspection Procedure

1. Connect the intelligent tester to the DLC3.
2. Turn the ignition switch ON and press the intelligent tester main switch ON.
3. Select the items below in the DATA LIST, and read the displays on the intelligent tester.

   Main body ECU

   DATA LIST REFERENCE (MAIN BODY ECU)



   Item	Measurement / Display (Range)	Normal Condition	Diagnostic Note
   DIMMER SW	Headlight dimmer switch signal / ON or OFF	ON: Headlight dimmer switch is in HI or FLASH position OFF: Headlight dimmer switch is in LO position	-
   PASSING LIGHT SW	Passing light switch signal / ON or OFF	ON: Headlight dimmer switch is in FLASH position OFF: Headlight dimmer switch is in except FLASH position	-
   FRONT FOG LIGHT SW	Front fog light switch signal / ON or OFF	ON: Front fog light switch is in ON position OFF: Front fog light switch is in OFF position	-
   HEADLIGHT SW	Headlight control switch signal (HEAD) / ON or OFF	ON: Light control switch is in HEAD position OFF: Light control switch is in except HEAD position	-
   HEADLIGHT SW (Tail)	Headlight control switch signal (TAIL) / ON or OFF	ON: Light control switch is in TAIL or HEAD position OFF: Light control switch is in except OFF position	-

   OK: ON is displayed on the intelligent tester screen.

OK: PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE

NG: Go TO NEXT STEP.

1. Remove the headlight dimmer switch.
2. Measure the resistance of the switch.

   Standard resistance

   RESISTANCE SPECIFIED CONDITIONS



   Tester Connection	Condition	Specified Condition
   18 (T) - 12 (EL)	OFF	10 kΩ or higher
   18 (T) - 12 (EL)	TAIL	Below 1 Ω
   20 (H) - 12 (EL)	OFF	10 kΩ or higher
   20 (H) - 12 (EL)	HEAD	Below 1 Ω
   16 (HL) - 12 (EL)	HIGH or FLASH	10 kΩ or higher
   16 (HL) - 12 (EL)	LOW	Below 1 Ω
   11 (HU) - 12 (EL)	LOW or FLASH	10 kΩ or higher
   11 (HU) - 12 (EL)	HIGH	Below 1 Ω
   17 (HF) - 12 (EL)	LOW or HIGH	10 kΩ or higher
   17 (HF) - 12 (EL)	FLASH	Below 1 Ω
   4 (BFG) - 3 (LFG)	Fog light switch OFF	10 kΩ or higher
   4 (BFG) - 3 (LFG)	Fog light switch ON	Below 1 Ω

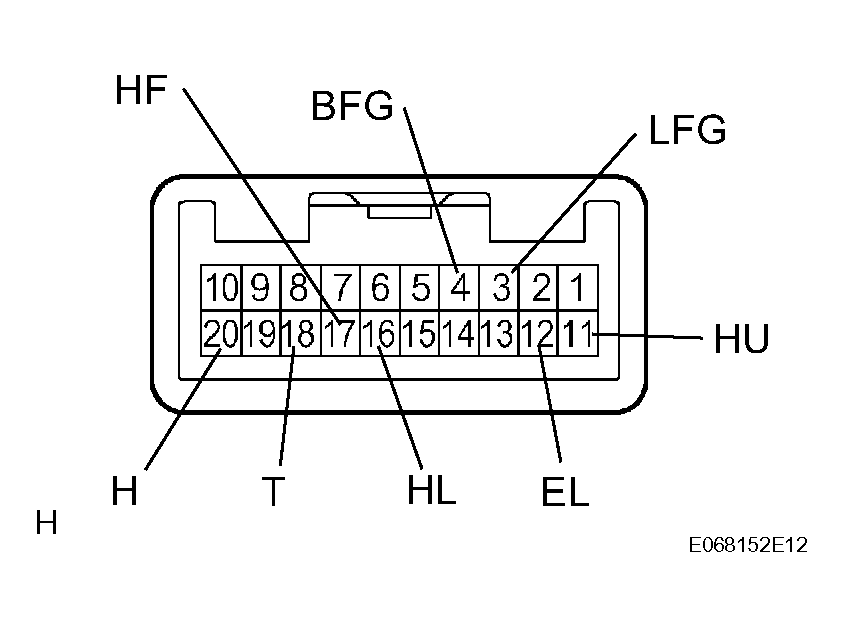

   Fig 1: Identifying Headlight Dimmer Switch Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE HEADLIGHT DIMMER SWITCH ASSEMBLY

OK: Go TO NEXT STEP.

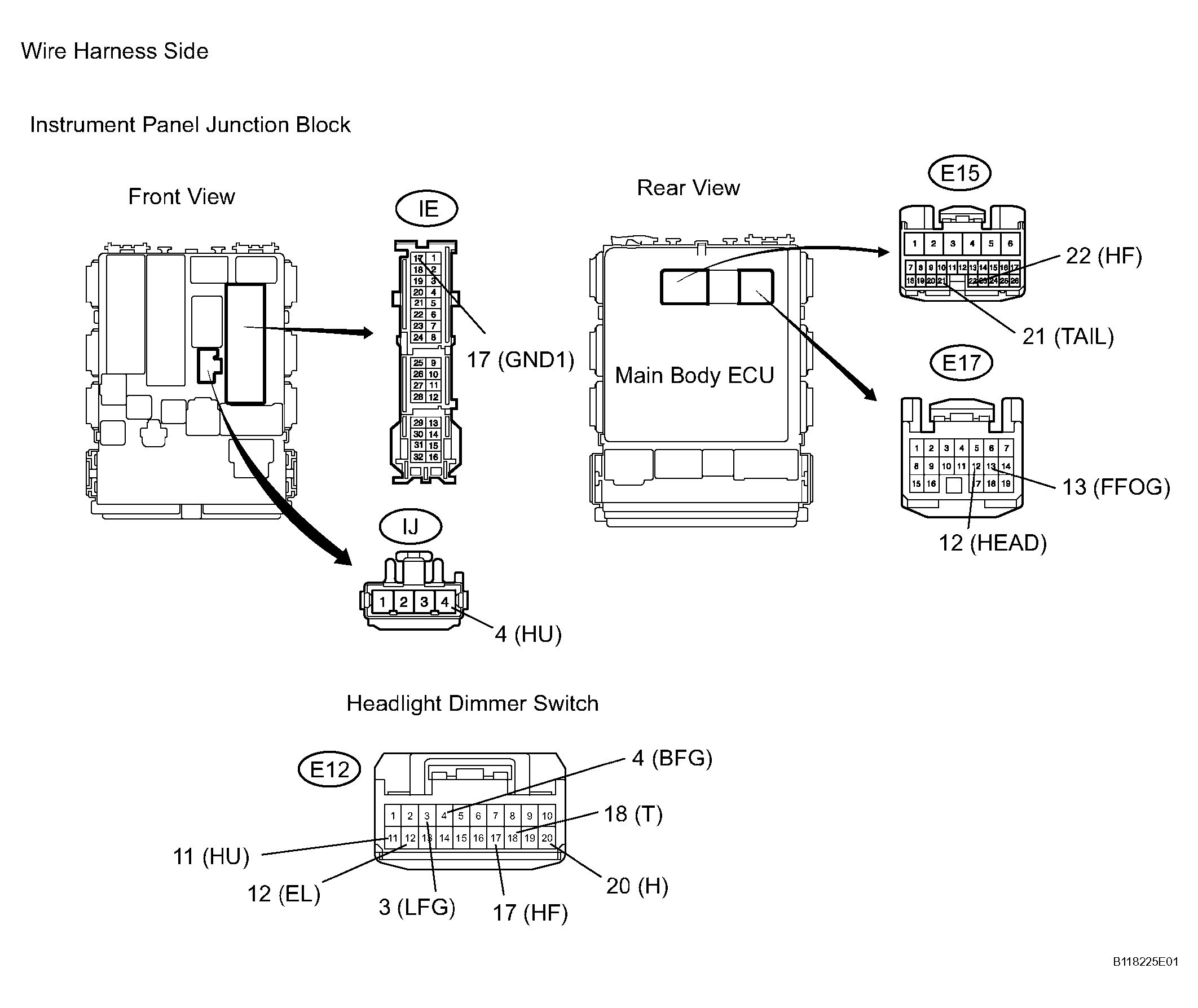

Fig 2: Identifying E15 Main Body ECU And E12 Dimmer Switch Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the E12 headlight dimmer switch connector.
2. Disconnect the IE and IJ instrument panel junction block connectors.
3. Disconnect the E15 and E17 main body ECU connectors.
4. Measure the resistance of the wire harness side connectors.

   Standard resistance

   RESISTANCE SPECIFIED CONDITIONS



   Tester Connection	Specified Condition
   E15-22 (HF) - E12-17 (HF)	Below 1 Ω
   E15-22 (HF) or E12-17 (HF) - Body ground	10 kΩ or higher
   E15-21 (TAIL) - E12-18 (T)	Below 1 Ω
   E15-21 (TAIL) or E12-18 (T) - Body ground	10 kΩ or higher
   E17-12 (HEAD) - E12-20 (H)	Below 1 Ω
   E17-12 (HEAD) or E12-20 (H) - Body ground	10 kΩ or higher
   E17-13 (FFOG) - E12-4 (BFG)	Below 1 Ω
   E17-13 (FFOG) or E12-4 (BFG) - Body ground	10 kΩ or higher
   IJ-4 (HU) - E12-11 (HU)	Below 1 Ω
   IJ-4 (HU) or E12-11 (HU) - Body ground	10 kΩ or higher
   E12-12 (EL) - Body ground	Below 1 Ω
   E12-3 (LFG) - Body ground	Below 1 Ω
   IE-17 (GND1) - Body ground	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: REPLACE INSTRUMENT PANEL JUNCTION BLOCK (MAIN BODY ECU)
