Map Light Assembly: Disassembly

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE MAP LIGHT BULB
    1. Remove the 2 bulbs from the light.

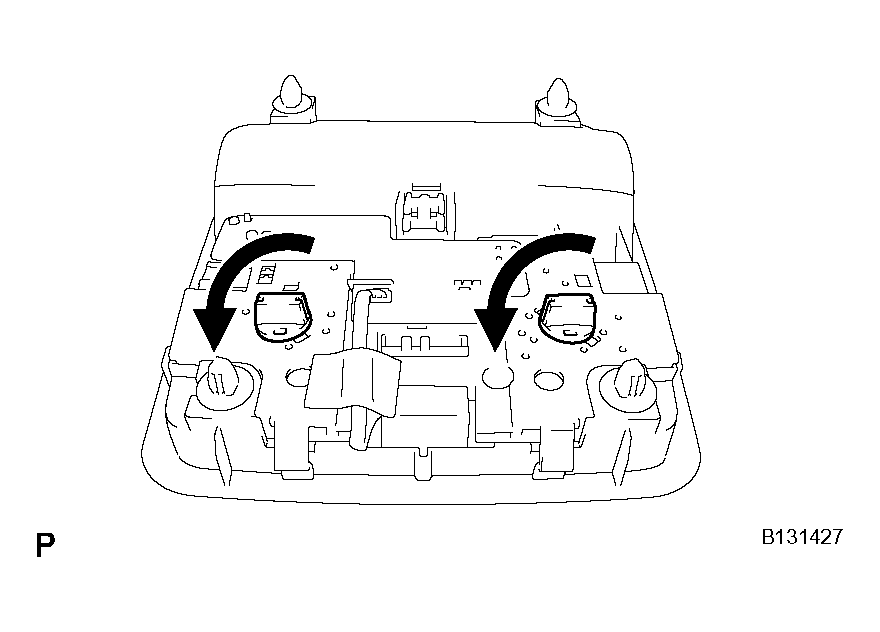

      Fig 1: Removing Map Light Bulb
      G04490858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
