Map Light Assembly: Inspection
WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT MAP LIGHT ASSEMBLY

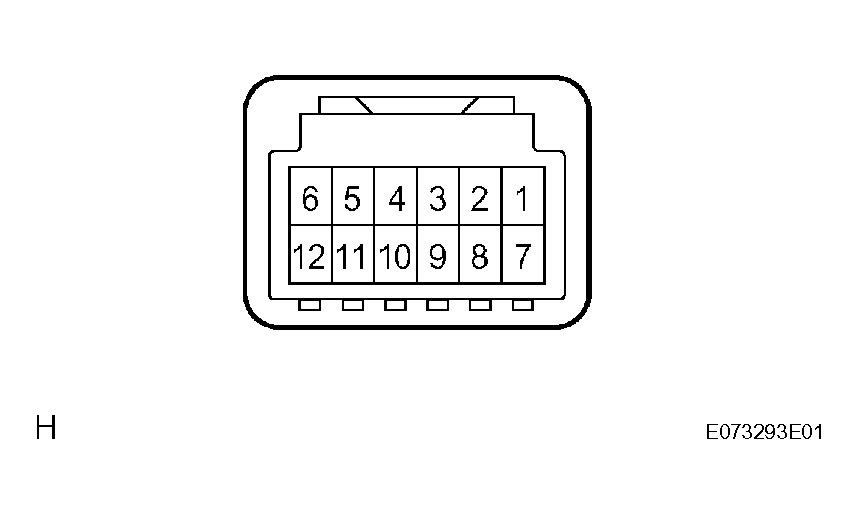

- Connect the battery's positive (+) lead to terminal 6 and the negative (-) lead to terminal 1, and then check that the light comes on when the switch is in the DOOR position.
OK: Light comes on.
If the result is not as specified, replace the light assembly.
- Connect the battery's positive (+) lead to terminal 6 and the negative (-) lead to terminal 7, and then check that the light comes on when the switch is in the ON position.
OK: Light comes on.
If the result is not as specified, replace the light assembly.
- Connect the battery's positive (+) lead to terminal 6 and the negative (-) lead to terminal 1, and then check that the light comes on when the switch is in the DOOR position.
