Map Light Assembly: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL MAP LIGHT LENS
1. Attach the 8 claws to install the map light lens.

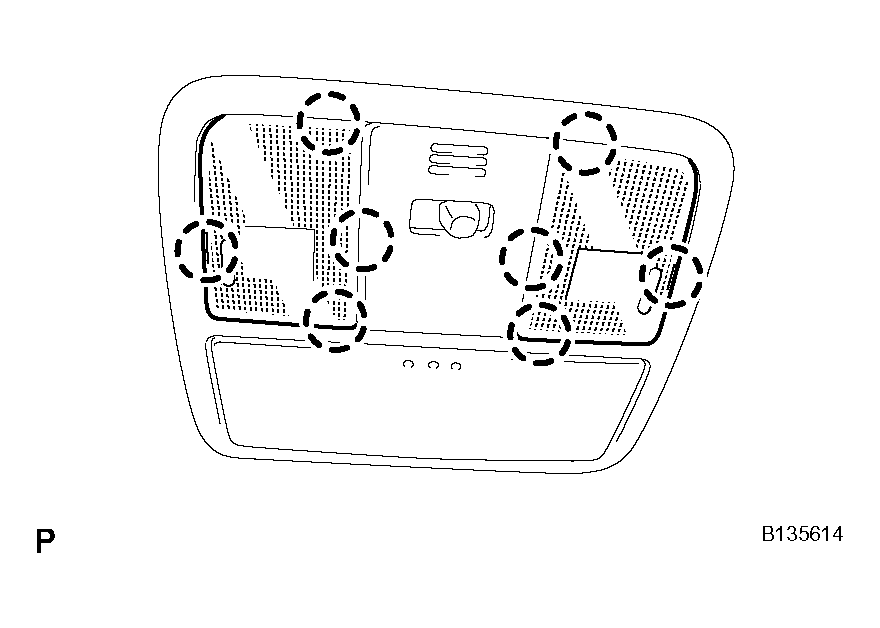

  Fig 1: Installing Map Light Lens
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL MAP LIGHT ASSEMBLY
1. Connect the light connector.
2. Attach the 4 clips to install the map light.
Fig 2: Installing Map Light Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
