Map Light Assembly: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE MAP LIGHT ASSEMBLY
1. Detach the 4 clips and remove the map light.
2. Disconnect the light connector.

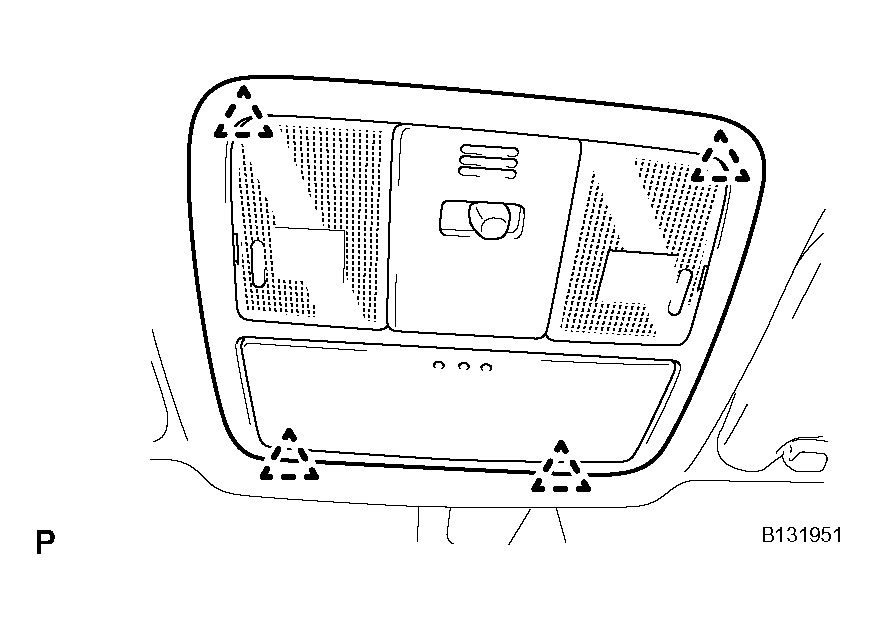

  Fig 1: Removing Map Light Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE MAP LIGHT LENS
1. Using a screwdriver, pry out the 8 claws and remove the map light lens.
  HINT:

  Tape the screwdriver tip before use.

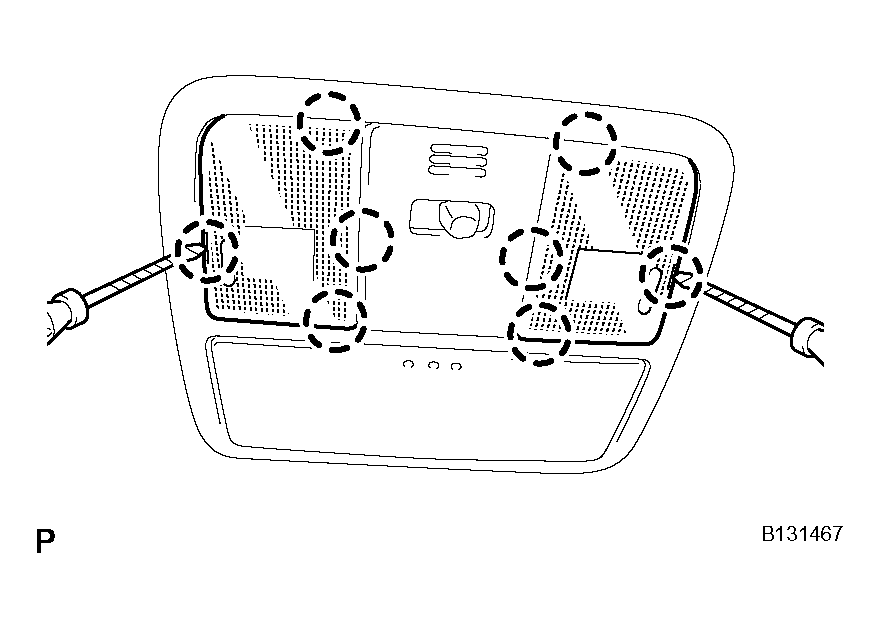

  Fig 2: Removing Map Light Lens
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
