Rear Combination Light Assembly: Disassembly

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH and LH sides.
The procedures listed below are for the LH side.

REMOVE REAR COMBINATION LIGHT BULB
1. Turn the 3 bulbs in the direction indicated by the arrows and pull to remove them.

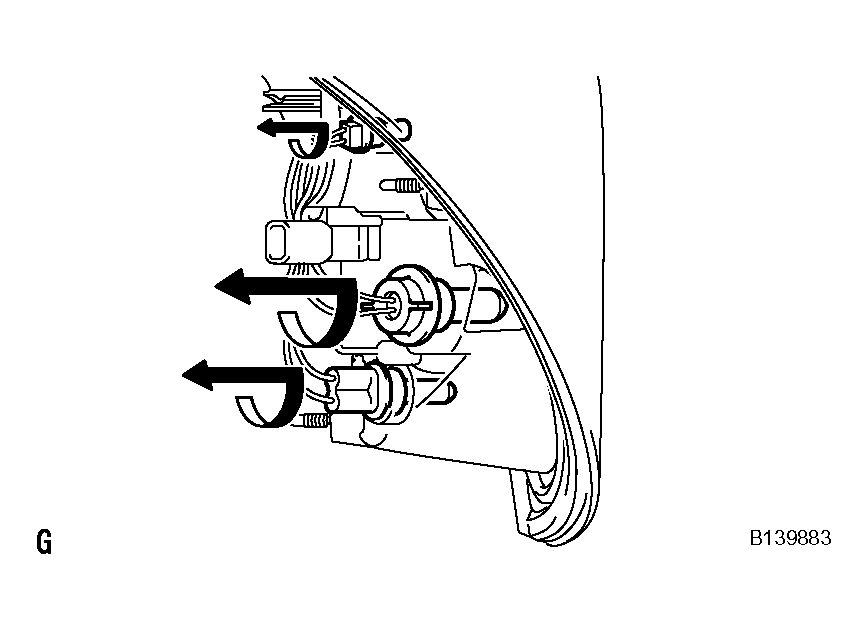

  Fig 1: Removing Rear Combination Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
