Rear Combination Light Assembly: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH and LH sides.
The procedures listed below are for the LH side.

INSTALL REAR COMBINATION LIGHT ASSEMBLY

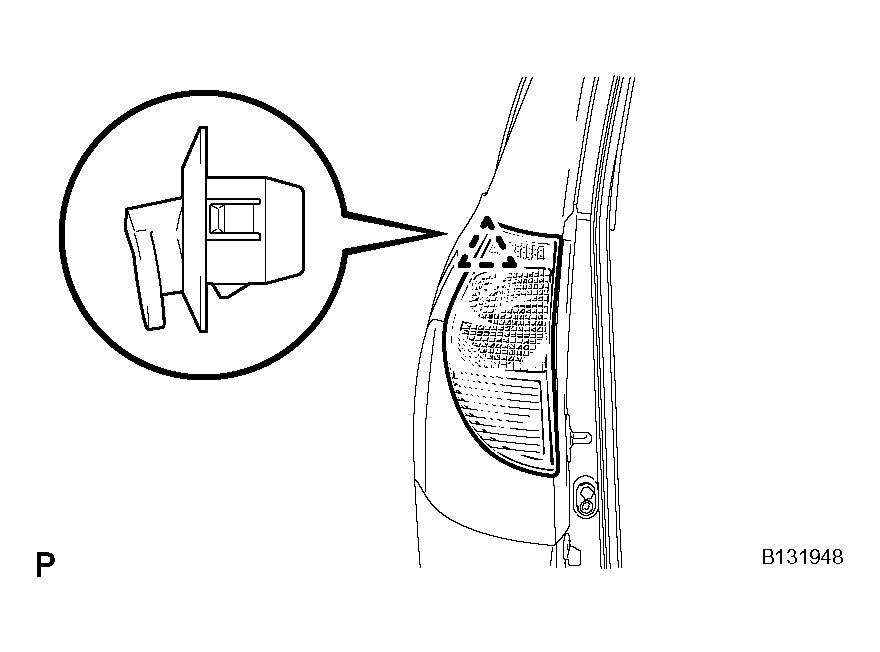

1. Attach the clip to install the light.

  Fig 1: Attaching Clip To Installing Light
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

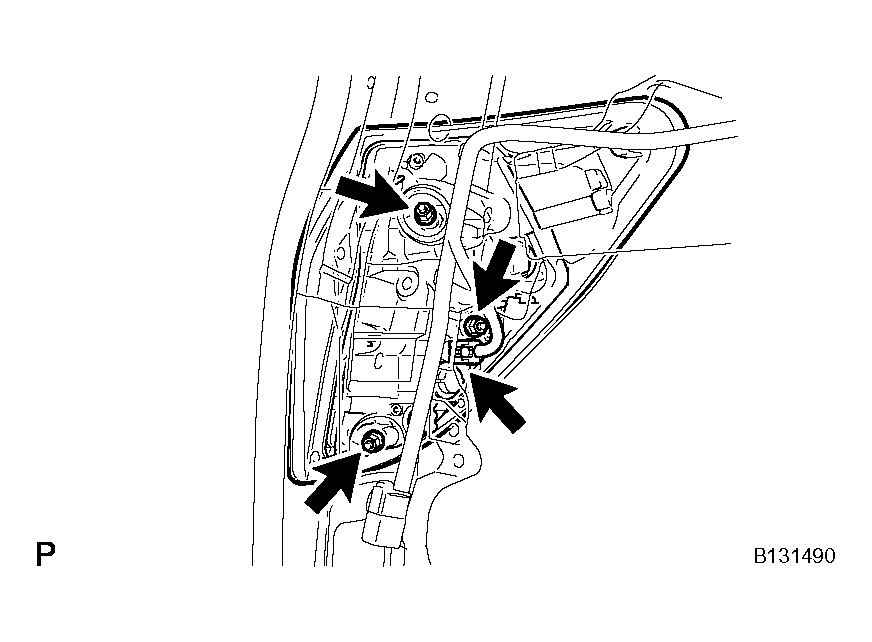

2. Install the 3 nuts and connect the connector.

  Fig 2: Installing Nuts For Connecting Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
