Room Light Assembly: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL ROOM LIGHT ASSEMBLY
1. Attach the 4 claws to install the room light switch base.

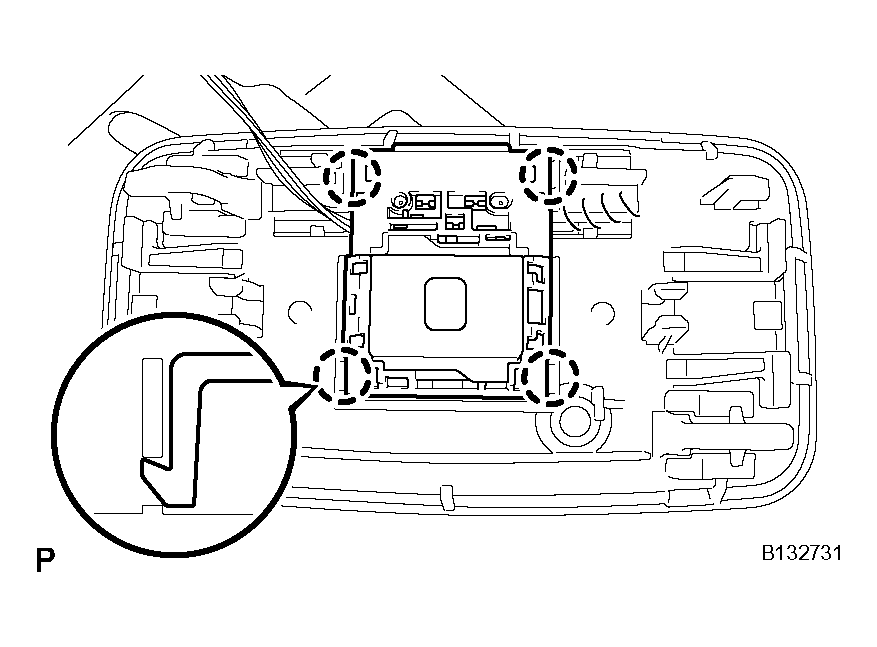

  Fig 1: Installing Room Light Switch Base
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Attach the 4 claws to install the room light.

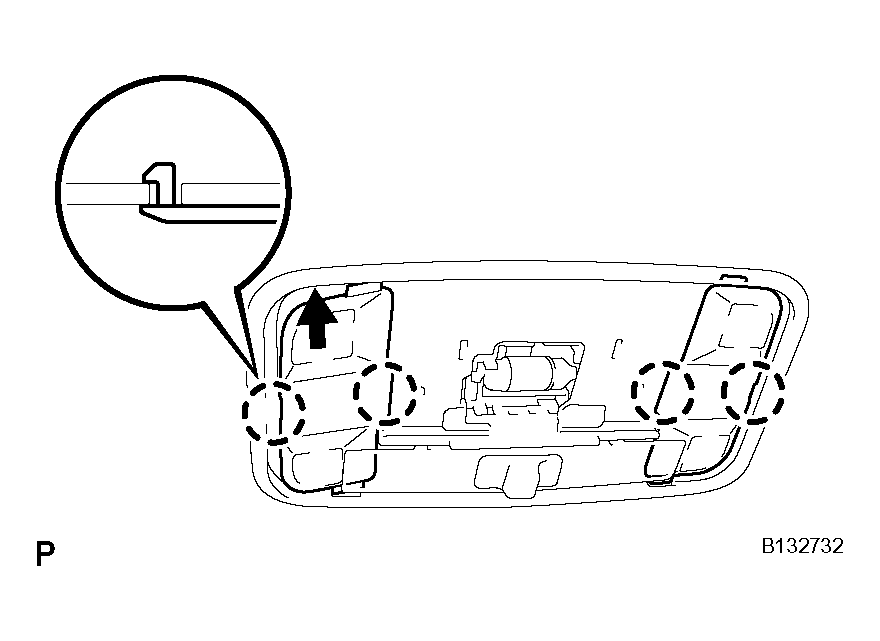

  Fig 2: Attaching Claws To Installing Room Light
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the bulb to the room light switch base.

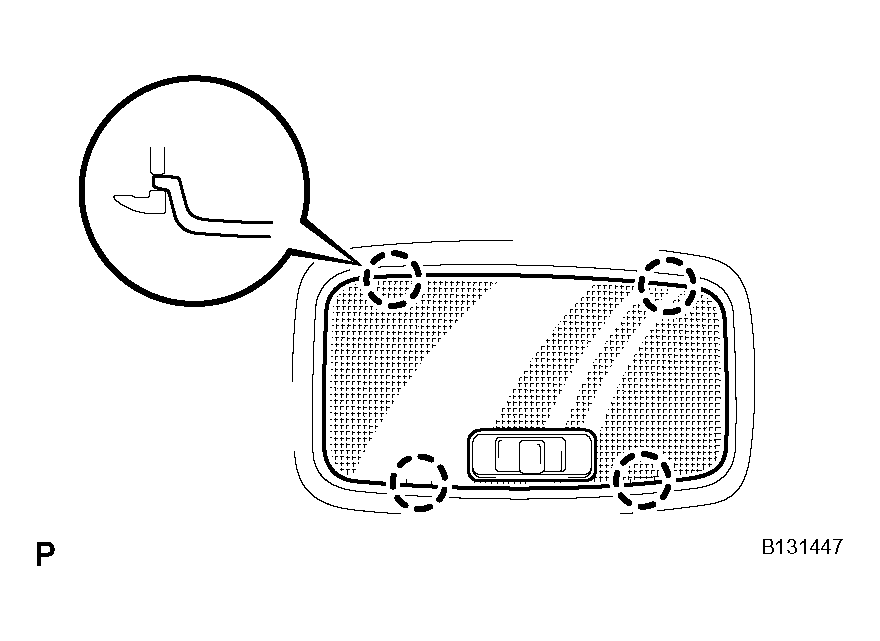

  Fig 3: Installing Bulb To Room Light Switch Base
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Attach the 4 claws to install the 2 covers.

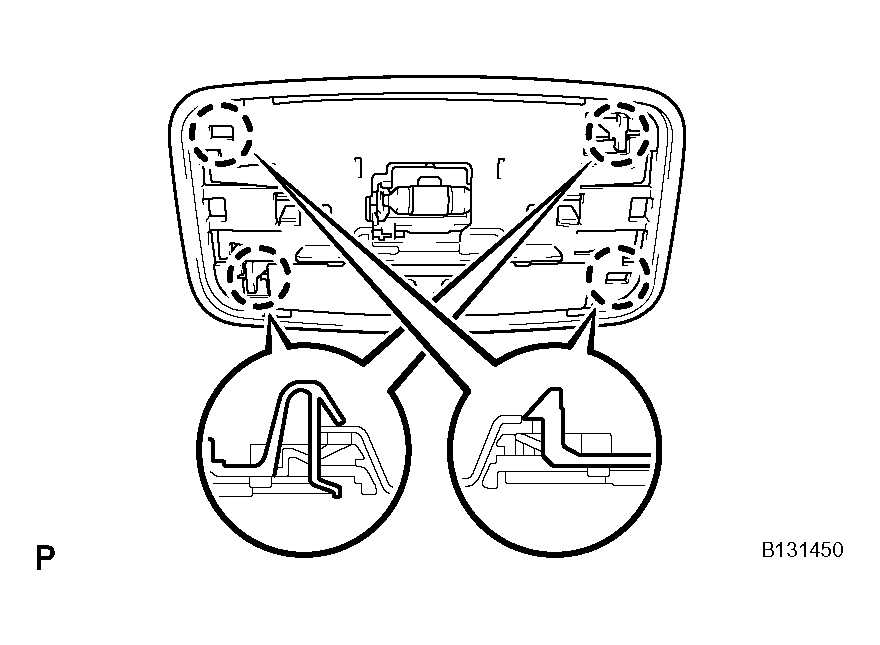

  Fig 4: Attaching Claws To Installing Covers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOM LIGHT LENS
1. Attach the 4 claws to install the lens.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

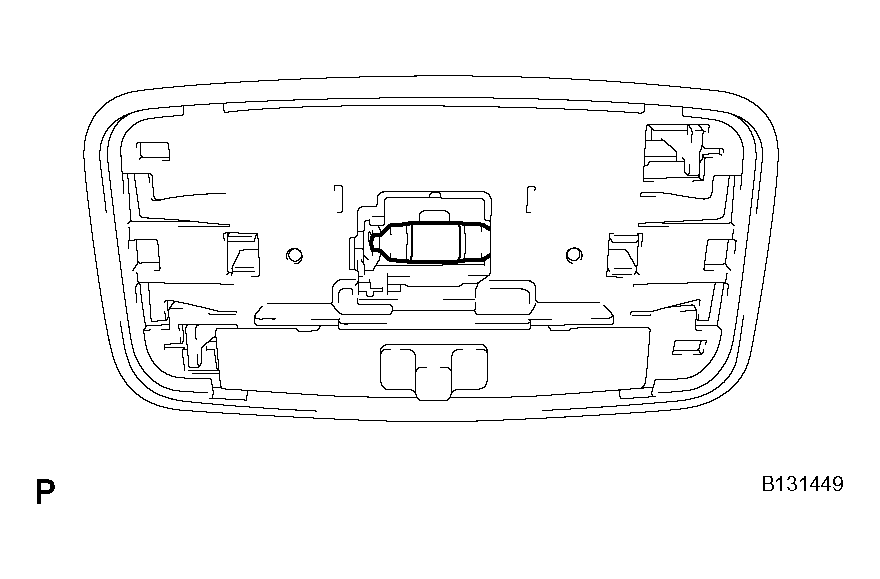

Fig 5: Installing Room Light Lens
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
