Vanity Light: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL VANITY LIGHT BULB
1. Install the light bulb to the vanity light.

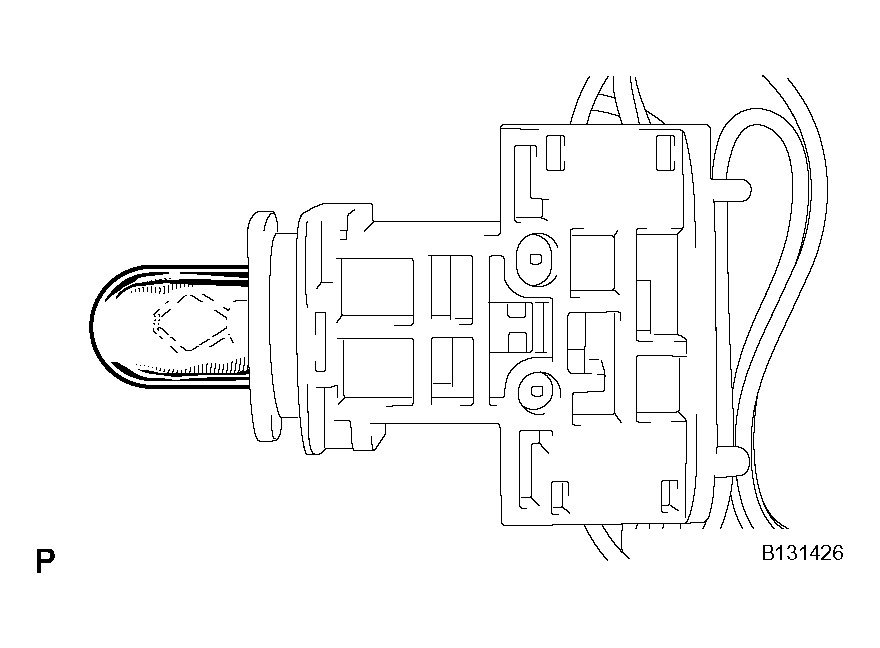

  Fig 1: Installing Light Bulb To Vanity Light
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL VANITY LIGHT ASSEMBLY
1. Attach the 2 claws and install the vanity light lens to the vanity light.

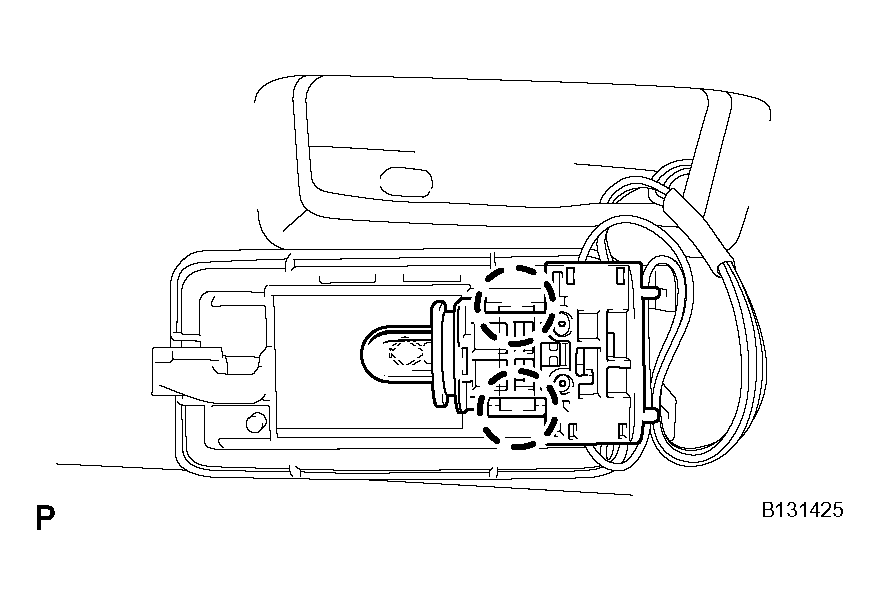

  Fig 2: Attaching Claws For Installing Vanity Light Lens
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the vanity light.

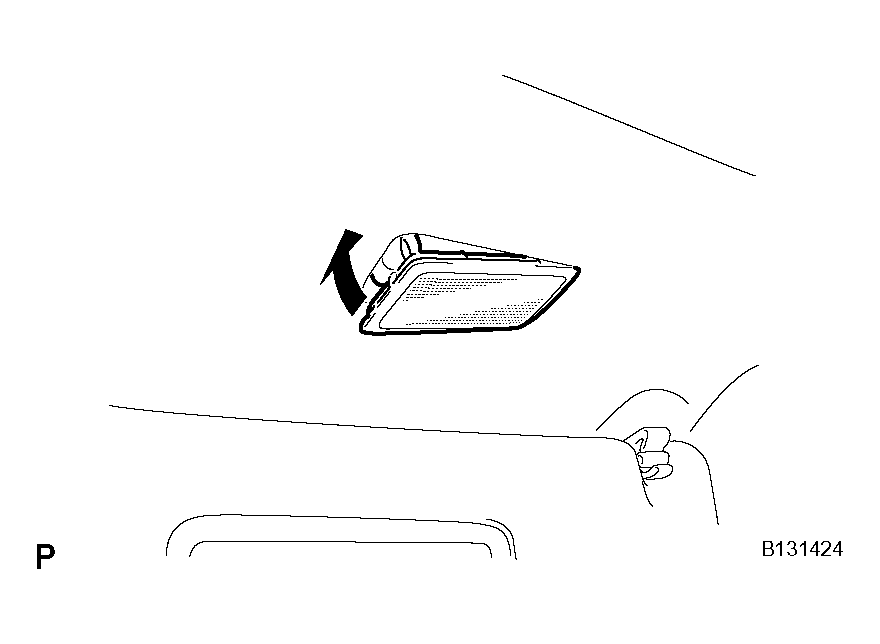

  Fig 3: Installing Vanity Light
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
