Inspection Procedure
WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Be sure to read DESCRIPTION before performing the following procedures.
- CHECK FOR DTC OF OTHER COMPONENTS
- Check if the component shown by sub-code is displayed in the check result of the other components.
- Check if "01-DC" is output for the other components.
- If "01-DC" is output for any other components, check if the same physical address is displayed.
Result
DTC RESULT DESCRIPTIONResult Proceed to "01-DC" Is output and the same physical address is displayed A "01-DC" is not output or the same physical address is not displayed B HINT:
For the list of the components shown by sub-codes, refer to the table in the next step.
B: GO to step 4
A: GO to next step
- IDENTIFY THE COMPONENT WHICH HAS STORED THIS CODE
- Enter the diagnostic mode.
- Press the preset switch "2" to change to "Detailed Information Mode".
- Identify the component which has stored this code.

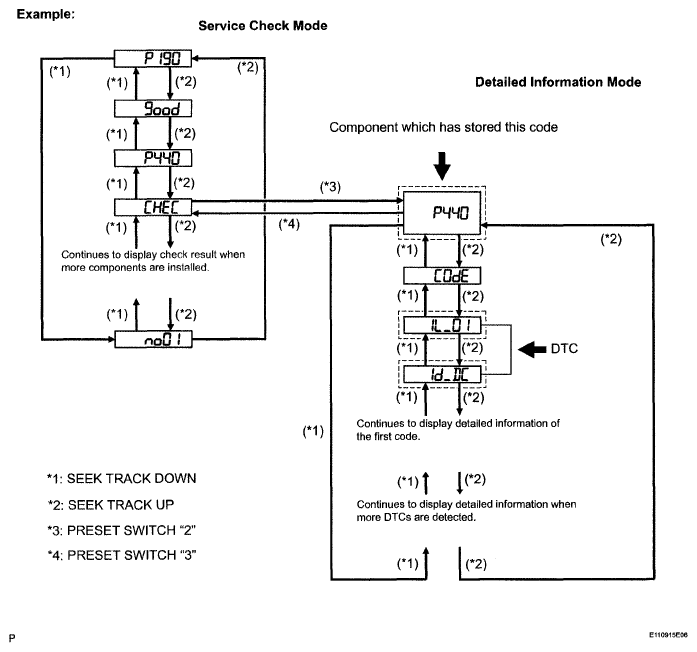

Component table:
COMPONENT CHARTComponent Physical address Stereo component amplifier 440 Television display assembly 1B0 Radio receiver 190 HINT:
- "440 (Stereo component amplifier)" is the component which has stored this code in the example shown in the illustration.
- For details of the DTC display, refer to the "DTC CHECK/CLEAR " .
- CHECK COMPONENT WHICH HAS STORED THIS CODE
- Select the component which has stored this code.
Component table:
COMPONENT CHARTComponent Proceed to Stereo component amplifier STEREO COMPONENT AMPLIFIER COMMUNICATION ERROR Television display assembly TELEVISION DISPLAY ASSEMBLY COMMUNICATION ERROR Radio receiver RADIO RECEIVER COMMUNICATION ERROR NEXT: END
- CLEAR DTC
- Clear the DTC (see DTC CHECK /CLEAR ).
HINT:
If "01 -DC" is output for only one component, this may not indicate a malfunction.
- RECHECK DTC
- Recheck the DTC and check if the same trouble code occurs again.
OK:
Malfunction disappears.
NG: GO to step 3
OK: END
