Terminals Of Ecu

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK RADIO RECEIVER ASSEMBLY (for Premium Sound Models)

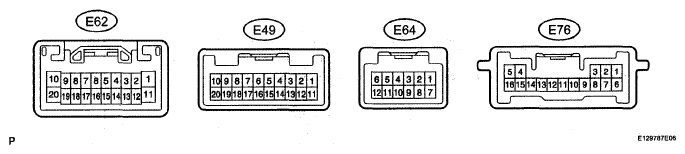

    Fig 1: Identifying ECU Terminals
    G05184721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the E62 and E76 receiver connectors.
    2. Measure the resistance and voltage of the wire harness side connector.
      SYMBOLS (TERMINAL NO.) AND DESCRIPTION

      Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
      GND (E62-20) - Body ground BR - Body ground Ground Always Below 1 Ω
      B (E62-1) - GND (E62-20) L - BR Battery Always 10 to 14 V
      ACC (E62-11) - GND (E62-20) GR - BR ACC power supply Ignition switch OFF Blow 1 V
      ACC (E62-11) - GND (E62-20) GR - BR ACC power supply Ignition switch ACC 10 to 14 V
      +B (E76-5) - GND (F62-20) R - BR Battery Always 10 to 14 V
      GND (E76-14) - Body ground BR - Body ground Ground Always Below 1 V
      ACC (E76-16) - GND (F62-20) GR - BR Accessory (ON) Ignition switch off → ACC Below 1 V → 10 to 14 V

      If the result is not as specified, there may be a malfunction on the wire harness side.

    3. Reconnect the E62 and E76 receiver connectors.
    4. Measure the voltage of the connectors.
    SYMBOLS (TERMINAL NO.) AND DESCRIPTION

    Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
    ATX+ (E62-5) - GND (E62-20) R - BR AVC-LAN communication signal Ignition switch ACC 2 to 3 V
    ATX- (E62-15) - GND (E62-20) G - BR AVC-LAN communication signal Ignition switch ACC 2 to 3 V
    MUTE (E62-7) - GND (E62-20) P - BR Mute signal Audio system is playing → changing mode Above 3.5 V → Below 1 V
    L+ (E62-9) - GND (E62-20) R - BR Sound signal (left) Audio system is operating Waveform synchronized with sound is output
    L- (E62-19) - GND (E62-20) G - BR Sound signal (left) Audio system is operating Waveform synchronized with sound is output
    R- (E62-18) - GND (E62-20) W - BR Sound signal (right) Audio system is operating Waveform synchronized with sound is output
    R+ (E62-8) - GND (E62-20) B - BR Sound signal (right) Audio system is operating Waveform synchronized with sound is output
    SLD (E62-10) - GND (E62-20) Shielded - BR Shielded Always Below 1 V
    ALI (E49-17) - GND (E62-20) B - BR Sound signal (left) External device is playing (when stereo jack is used) Waveform synchronized with sound is output
    ARI (E49-15) - GND (E62-20) W - BR Sound signal (right) External device is playing (when stereo jack is used) Waveform synchronized with sound is output
    ASGN (E49-16) - Body ground Shielded - Body ground Shielded Always Below 1 V
    AUXI (E49-19) - GND (E62-20) R - BR External input connection detection signal External device is connected Below 1 V
    ILL+ (E62-2) - GND (E62-20) G - BR Illumination signal Light control switch TAIL or HEAD 10 to 14 V
    ILL- (E62-12) - GND (E62-20) BR - BR Illumination signal Light control switch TAIL or HEAD Pulse generation
    SW1 (E49-7)* - GND (E62-20) W - BR Steering pad switch signal Steering pad switch not pushed 4 V or more
    SW1 (E49-7)* - GND (E62-20) W - BR Steering pad switch signal Steering pad switch SEEK+ switch pushed Approx. 0.5 V
    SW1 (E49-7)* - GND (E62-20) W - BR Steering pad switch signal Steering pad switch SEEK- switch pushed Approx. 0.9 V
    SW1 (E49-7)* - GND (E62-20) W - BR Steering pad switch signal Steering pad switch VOL+ switch pushed Approx. 2.0 V
    SW1 (E49-7)* - GND (E62-20) W - BR Steering pad switch signal Steering pad switch VOL-switch pushed Approx. 3.4 V
    SW2 (E49-8)* - GND (E62-20) R - BR Steering pad switch signal Steering pad switch not pushed 4 V or more
    SW2 (E49-8)* - GND (E62-20) R - BR Steering pad switch signal Steering pad switch MODE switch pushed Below 0.5 V
    SW2 (E49-8)* - GND (E62-20) R - BR Steering pad switch signal Steering pad switch ON HOOK switch pushed Approx. 0.9 V
    SW2 (E49-8)* - GND (E62-20) R - BR Steering pad switch signal Steering pad switch OFF HOOK switch pushed Approx. 2.0 V
    SW2 (E49-8)* - GND (E62-20) R - BR Steering pad switch signal Steering pad switch VOICE switch pushed Approx. 3.4 V
    SWG (E49-6)* - Body ground B - Body ground Steering pad switch signal ground Always Below 1 V
    MIC- (E76-1) - GND (F62-20) R - BR Microphone voice signal "Bluetooth" handsfree function is ON A waveform synchronized with sounds is output
    MIC+ (E76-2) - GND (F62-20) W - BR Microphone voice signal "Bluetooth" handsfree function is ON A waveform synchronized with sounds is output
    MCVD (E76-7) - GND (F62-20) B - BR Microphone AMP power supply Ignition switch off → ON Below 1 V → 5 V
    HINT:
    *: with Steering Pad Switch
    If the result is not as specified, the receiver may have a malfunction.
  2. CHECK RADIO RECEIVER (for Standard Models)

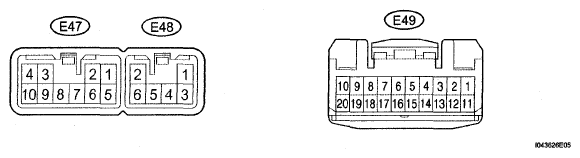

    Fig 2: Identifying ECU Connector Terminals (Radio Receiver)
    G05184722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the E47 receiver connector.
    2. Measure the resistance and voltage of the wire harness side connector.
      SYMBOLS (TERMINAL NO.) AND DESCRIPTION

      Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
      GND (E47-7) - Body ground BR - Body ground Ground Always Below 1 Ω
      B (E47-4) - GND (E47-7) L - BR Battery Always 10 to 14 V
      ACC (E47-3) - GND (E47-7) GR - BR ACC power supply Ignition switch OFF Below 1 V
      ACC (E47-3) - GND (E47-7) GR - BR ACC power supply Ignition switch ACC 10 to 14 V

      If the results is not as specified, there may be a malfunction on the wire harness side.

    3. Reconnect the E47 receiver connector.
    4. Measure the voltage of the connectors.
    SYMBOLS (TERMINAL NO.) AND DESCRIPTION

    Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
    FL+ (E47-2) - GND (E47-7) P - BR Sounds signal (front left) Audio system is operating Waveform synchronized with sound is output
    FL- (E47-6) - GND (E47-7) V - BR Sounds signal (front left) Audio system is operating Waveform synchronized with sound is output
    FR+ (E47-1) - GND (E47-7) LG - BR Sounds signal (front right) Audio system is operating Waveform synchronized with sound is output
    FR- (E47-5) - GND (E47-7) L - BR Sounds signal (front right) Audio system is operating Waveform synchronized with sound is output
    RL+ (E48-2) - GND (E47-7) B - BR Sounds signal (rear left) Audio system is operating Waveform synchronized with sound is output
    RL- (E48-6) - GND (E47-7) Y - BR Sounds signal (rear left) Audio system is operating Waveform synchronized with sound is output
    RR+ (E48-1) - GND (E47-7) R - BR Sounds signal (rear right) Audio system is operating Waveform synchronized with sound is output
    RR- (E48-3) - GND (E47-7) W - BR Sounds signal (rear left) Audio system is operating Waveform synchronized with sound is output
    SPD (E49-3) - GND (E47-7) V - BR Speed signal Ignition switch ON Drive wheels are turned slowly Pulse generation
    ALI (E49-17) - GND (E47-7) B - BR Sound signal (left) External device is playing (when stereo jack is used) Waveform synchronized with sound is output
    ARI (E49-15) - GND (E47-7) W - BR Sound signal (right) External device is playing (when stereo jack is used) Waveform synchronized with sound is output
    ASGN (E49-16) - Body ground Shielded - Body ground Shielded Always Below 1 V
    AUXI (E49-19) - GND (E47-7) R - BR External input connection detection signal External device is connected Below 1 V
    ILL+ (E47-10) - GND (E47-7) G - BR Illumination signal Light control switch TAIL or HEAD 10 to 14 V
    ILL- (E48-5) - GND (E47-7) BR - BR Illumination signal Light control switch TAIL or HEAD Pulse generation
    SW1 (E49-7)* - GND (E47-7) W - BR Steering pad switch signal Steering pad switch not pushed 4 V or more
    SW1 (E49-7)* - GND (E47-7) W - BR Steering pad switch signal Steering pad switch SEEK+ switch pushed Approx. 0.5 V
    SW1 (E49-7)* - GND (E47-7) W - BR Steering pad switch signal Steering pad switch SEEK- switch pushed Approx. 0.9 V
    SW1 (E49-7)* - GND (E47-7) W - BR Steering pad switch signal Steering pad switch VOL+ switch pushed Approx. 2.0 V
    SW1 (E49-7)* - GND (E47-7) W - BR Steering pad switch signal Steering pad switch VOL-switch pushed Approx. 3.4 V
    SW2 (E49-8)* - GND (E47-7) R - BR Steering pad switch signal Steering pad switch not pushed 4 V or more
    SW2 (E49-8)* - GND (E47-7) R - BR Steering pad switch signal Steering pad switch MODE switch pushed Below 0.5 V
    SWG (E49-6)* - Body ground B - Body ground Steering pad switch signal ground Always Below 1 V

    HINT:

    *: with Steering Pad Switch

    If the result is not as specified, the receiver may have a malfunction.

  3. CHECK STEREO COMPONENT AMPLIFIER (for Premium Sound Models)

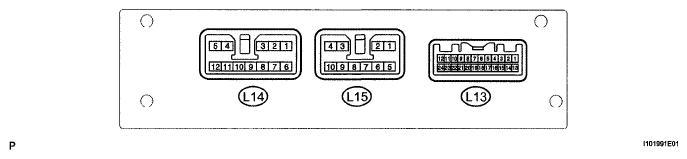

    Fig 3: Identifying Stereo Component Amplifier Connector Terminals
    G05184723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L13, L14 and L15 amplifier connectors.
    2. Measure the resistance and voltage of the wire harness side connectors.
      SYMBOLS (TERMINAL NO.) AND DESCRIPTION

      Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
      B (L15-1) - Body ground L - Body ground Battery Always 10 to 14 V
      +B2 (L15-5) - Body ground L - Body ground Battery Always 10 to 14 V
      ACC (L13-12) - Body ground GR - Body ground ACC power supply Ignition switch ACC 10 to 14 V
      GND (L14-6) - Body ground W-B - Body ground Ground Always Below 1 Ω
      GND2 (L14-7) - Body ground W-B - Body ground Ground Always Below 1 Ω

      If the results is not as specified, there may be a malfunction on the wire harness side.

    3. Reconnect the L13, L14 and L15 amplifier connectors.
    4. Measure the voltage of the connectors.
    SYMBOLS (TERMINAL NO.) AND DESCRIPTION

    Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
    TX+ (L13-8) - GND (L14-6) R - W-B AVC-LAN communication signal Ignition ACC 2 to 3 V
    TX- (L13-7) - GND (L14-6) G - W-B AVC-LAN communication signal Ignition ACC 2 to 3 V
    MUTE (L13-1) - GND (L14-6) P - W-B Mute signal Audio system playing → changing mode Above 3.5 V → Below 1 V
    L+ (L13-3) - GND (L14-6) R - W-B Sound signal (left) Audio system is operating Waveform synchronized with sound is output
    L- (L13-2) - GND (L14-6) G - W-B Sound signal (left) Audio system is operating Waveform synchronized with sound is output
    R- (L13-4) - GND (L14-6) W - W-B Sound signal (right) Audio system is operating Waveform synchronized with sound is output
    R+ (L13-5) - GND (L14-6) B - W-B Sound signal (right) Audio system is operating Waveform synchronized with sound is output
    SLD (L13-6) - GND (L14-6) Shielded - W-B Shielded Always Below 1 V
    FR- (L14-3) - GND (L14-6) L - W-B Sound signal (front right) Audio system is operating Waveform synchronized with sound is output
    FR+ (L14-9) - GND (L14-6) LG - W-B Sound signal (front right) Audio system is operating Waveform synchronized with sound is output
    FR- (L15-6) - GND (L14-6) L - W-B Sound signal (front right) Audio system is operating Waveform synchronized with sound is output
    FR+ (L15-2) - GND (L14-6) LG - W-B Sound signal (front right) Audio system is operating Waveform synchronized with sound is output
    FL- (L14-1) - GND (L14-6) V - W-B Sound signal (front left) Audio system is operating Waveform synchronized with sound is output
    FL+ (L14-2) - GND (L14-6) P - W-B Sound signal (front left) Audio system is operating Waveform synchronized with sound is output
    FL- (L15-7) - GND (L14-6) V - W-B Sound signal (front left) Audio system is operating Waveform synchronized with sound is output
    FL+ (L15-8) - GND (L14-6) P - W-B Sound signal (front left) Audio system is operating Waveform synchronized with sound is output
    RL+ (L15-3) - GND (L14-6) B - W-B Sound signal (rear left) Audio system is operating Waveform synchronized with sound is output
    RL- (L15-9) - GND (L14-6) Y - W-B Sound signal (rear left) Audio system is operating Waveform synchronized with sound is output
    RR+ (L15-10) - GND (L14-6) R - W-B Sound signal (rear right) Audio system is operating Waveform synchronized with sound is output
    RR- (L15-4) - GND (L14-6) W - W-B Sound signal (rear right) Audio system is operating Waveform synchronized with sound is output
    WFL+ (L14-5) - GND (L14-6) B - W-B Sound signal (woofer) Audio system is operating Waveform synchronized with sound is output
    WFL- (L14-12) - GND (L14-6) G - W-B Sound signal (woofer) Audio system is operating Waveform synchronized with sound is output
    WFR- (L14-10) - GND (L14-6) V - W-B Sound signal (woofer) Audio system is operating Waveform synchronized with sound is output
    WFR+ (L14-4) - GND (L14-6) P - W-B Sound signal (woofer) Audio system is operating Waveform synchronized with sound is output
    SPD (L13-11) - GND (L14-6) V - W-B Speed signal Ignition switch ON Drive wheels are turned slowly Pulse generation

    If the result is not as specified, the amplifier may have a malfunction.
