Front Axle Hub: Components

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.

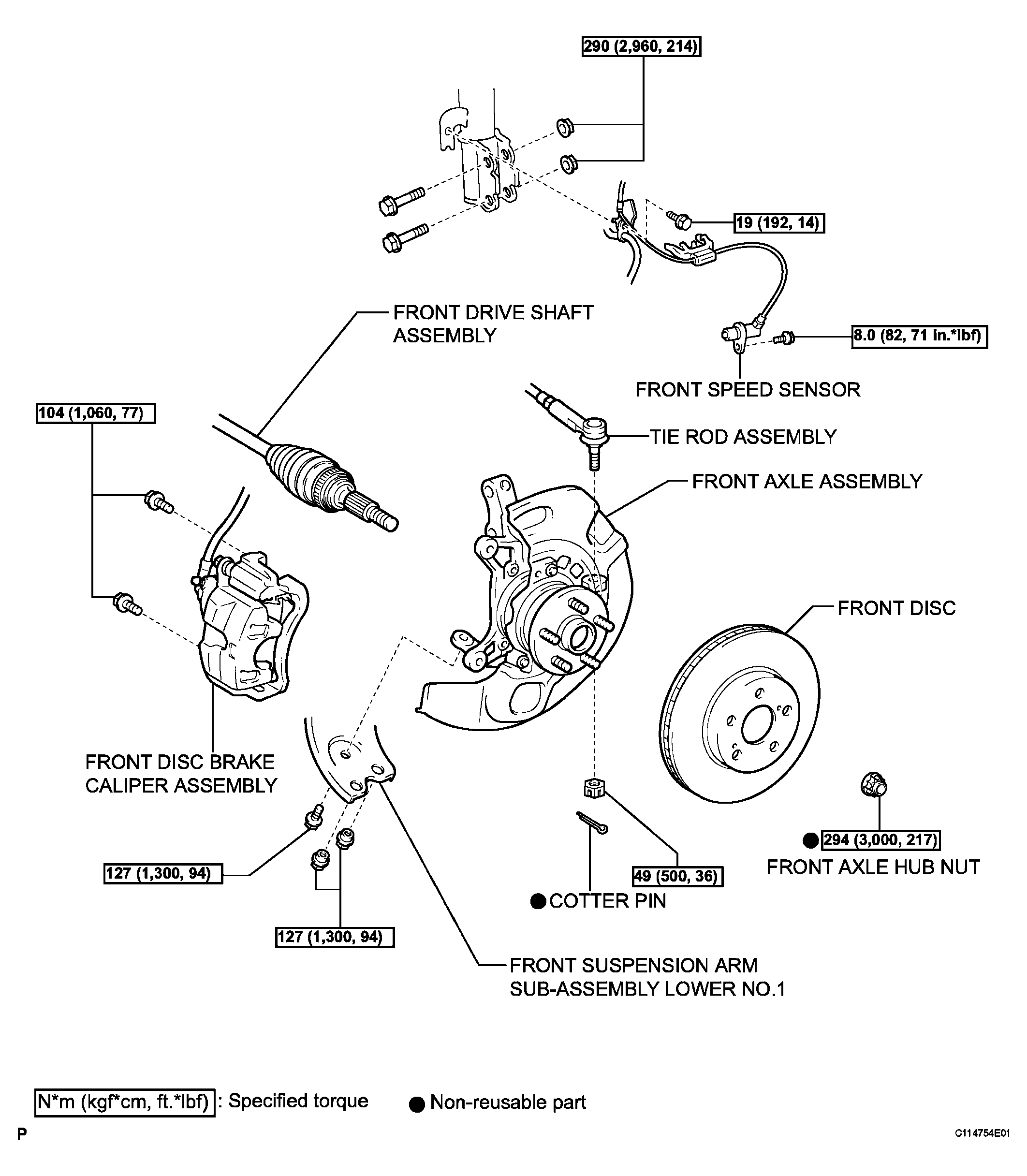

Fig 1: Exploded View Of Front Axle Hub With Torque Specifications (1 Of 2)
G04112920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

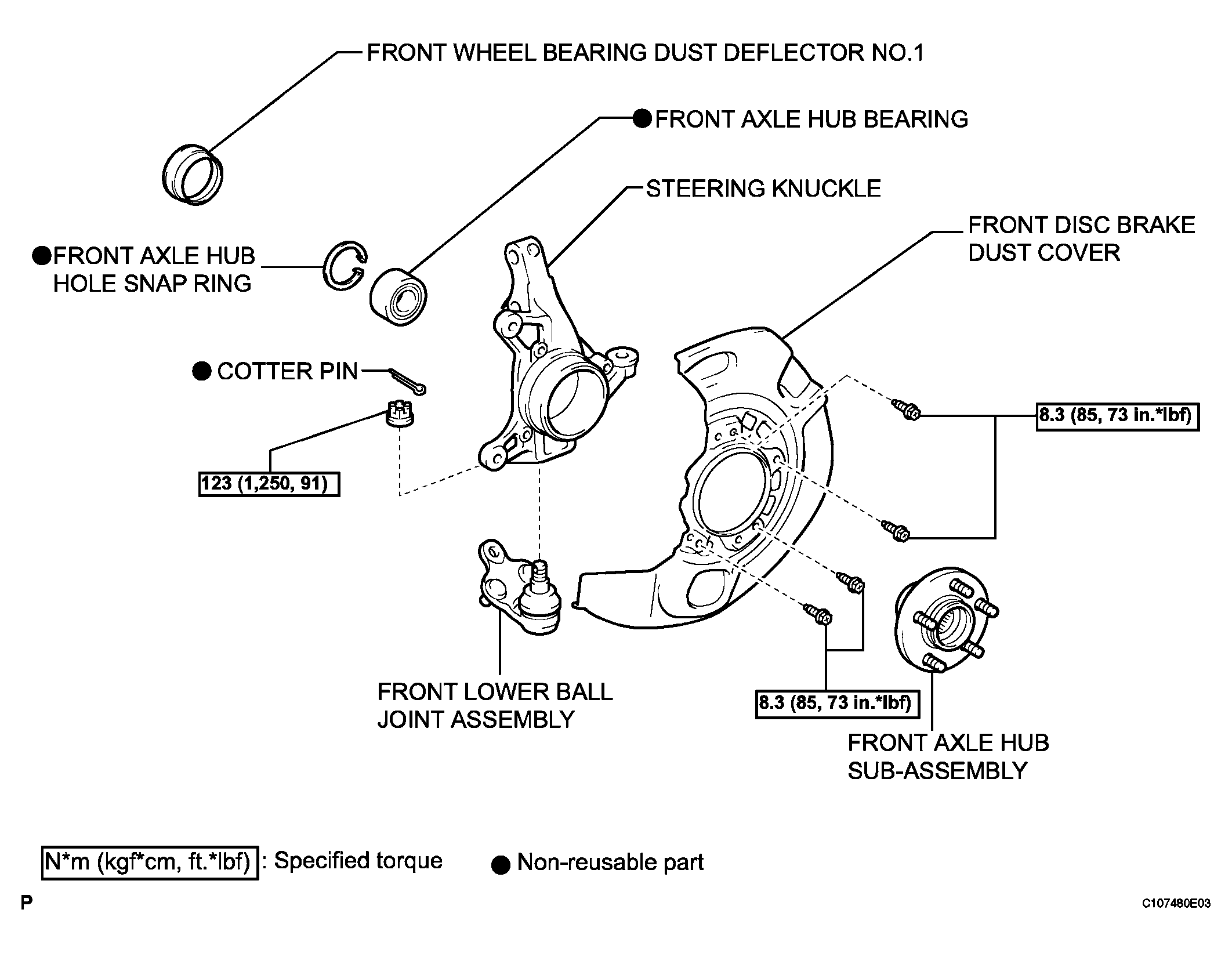

Fig 2: Exploded View Of Front Axle Hub With Torque Specifications (2 Of 2)
G04112921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
