Road Test

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT SET SWITCH
1. Push the main switch ON.

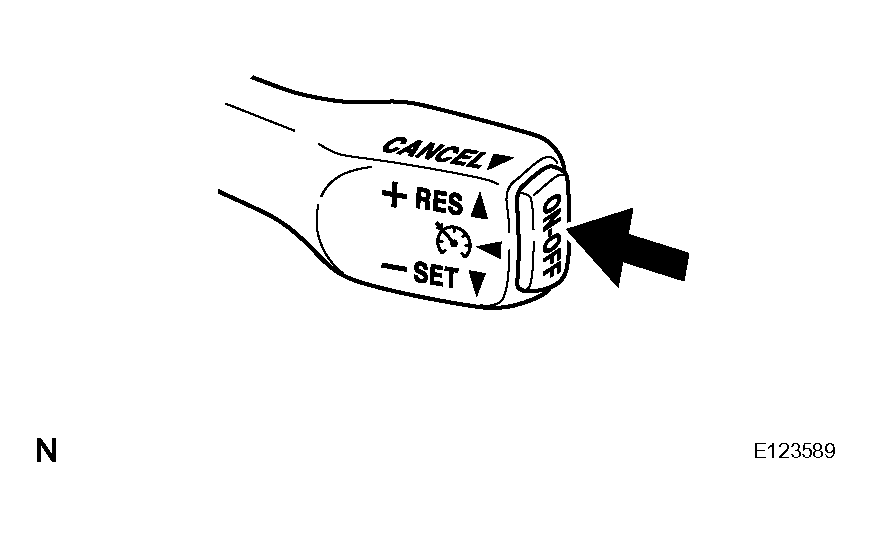

  Fig 1: Pushing Main Switch ON
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Drive at a desired speed (40 km/h (25 mph) or higher).
3. Press the control switch to -/SET.

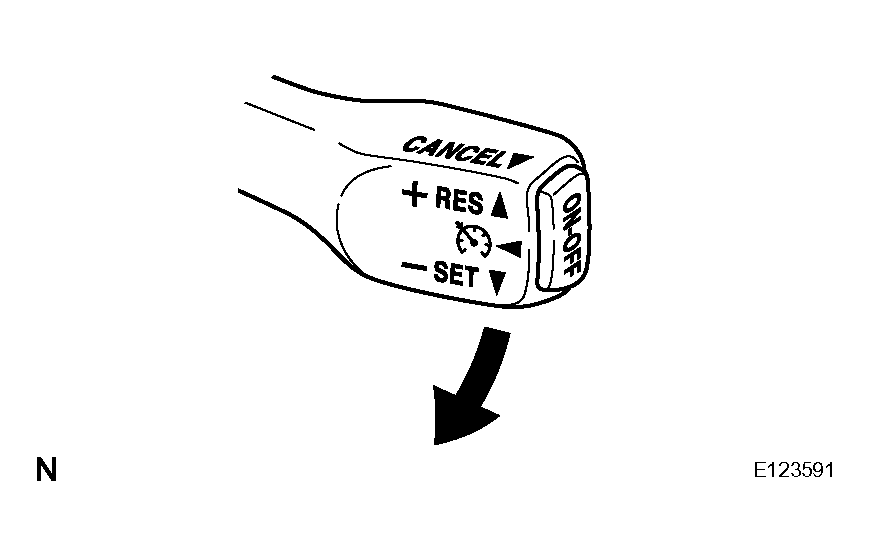

  Fig 2: Pressing Control Switch To -/SET
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. After releasing the switch, check that the vehicle cruises at the desired speed.
INSPECT "+" SWITCH
1. Push the main switch button ON.

  Fig 3: Pushing Main Switch Button ON
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Drive at a desired speed (40 km/h (25 mph) or higher).
3. Press the control switch to -/SET.

  Fig 4: Pressing Control Switch To -/SET
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Check that the vehicle speed increases while the control switch is pressed to +/RES, and that the vehicle cruises at the set speed when the switch is released.

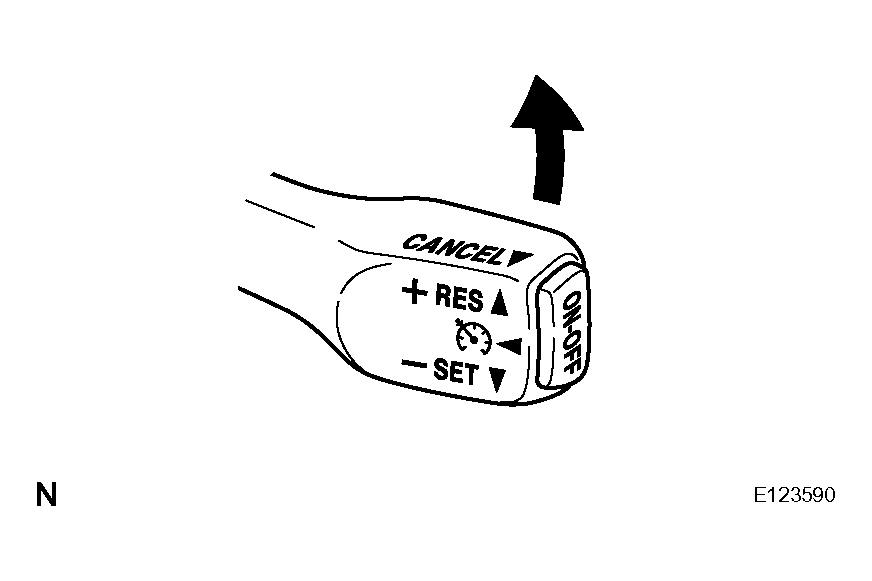

  Fig 5: Pressing Control Switch To +/RES
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Momentarily press the control switch to +/RES and then immediately release it. Check that the vehicle speed increases by about 1.6 km/h (1 mph) (Tap-up function).
INSPECT "-" SWITCH
1. Push the main switch button ON.

  Fig 6: Pushing Main Switch Button ON
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Drive at a desired speed (40 km/h (25 mph) or higher).
3. Press the control switch to -/SET.

  Fig 7: Pressing Control Switch To -/SET
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Check that the vehicle speed decreases while the control switch is pressed to -/SET, and the vehicle cruises at the set speed when the switch is released.
5. Momentarily press the control switch to -/SET, and then immediately release it. Check that the vehicle speed decreases by about 1.6 km/h (1 mph) (Tapdown function).
INSPECT CANCEL SWITCH
1. Push the main switch button ON.

  Fig 8: Pushing Main Switch Button ON
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Drive at a desired speed (40 km/h (25 mph) or higher).
3. Press the control switch to -/SET.

  Fig 9: Pressing Control Switch To -/SET
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. When operating one of the following, check that the cruise control system is canceled.
  - Depressing the brake pedal
  - Pushing the cruise control main switch OFF
  - Pulling the cruise control switch to CANCEL

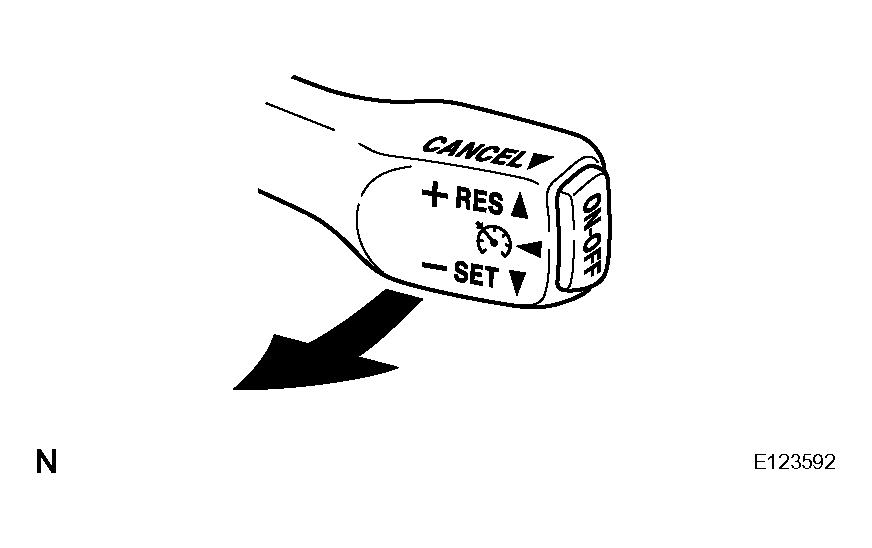

    Fig 10: Pulling Cruise Control Switch To CANCEL
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - Moving the shift lever to any position except D or 3
INSPECT RES (RESUME) SWITCH
1. Push the main switch button ON.

  Fig 11: Pushing Main Switch Button ON
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Drive at a desired speed (40 km/h (25 mph) or higher).
3. Press the control switch to -/SET.

  Fig 12: Pressing Control Switch To -/SET
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. When operating one of the following, check that the cruise control system is canceled.
  - Depressing the brake pedal
  - Pulling the cruise control switch to CANCEL

    Fig 13: Pulling Cruise Control Switch To CANCEL
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - Moving the shift lever to any position except D or 3
5. After the control switch is pressed to +/RES at a driving speed of more than 40 km/h (25 mph), check that the vehicle restores the speed before the cancellation.

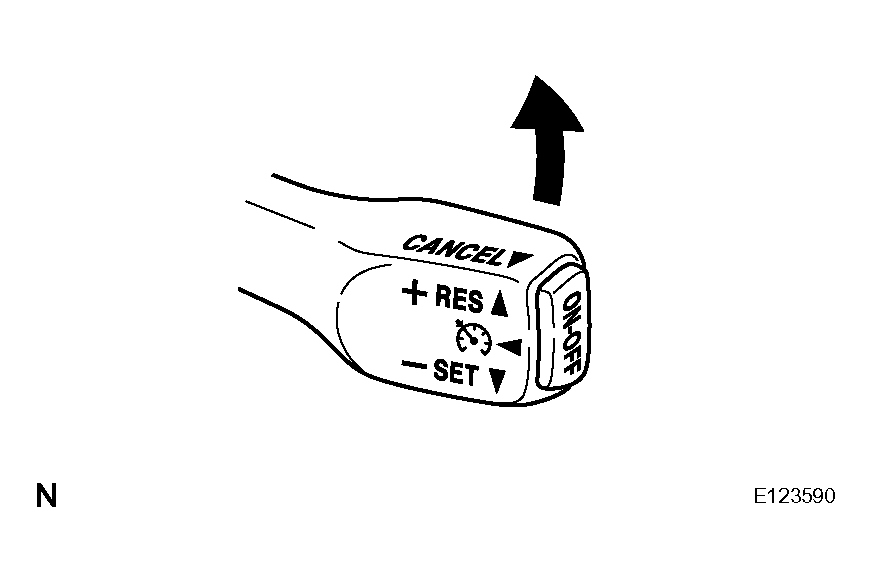

  Fig 14: Pressing Control Switch To +/RES
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
