Stop Light Switch Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

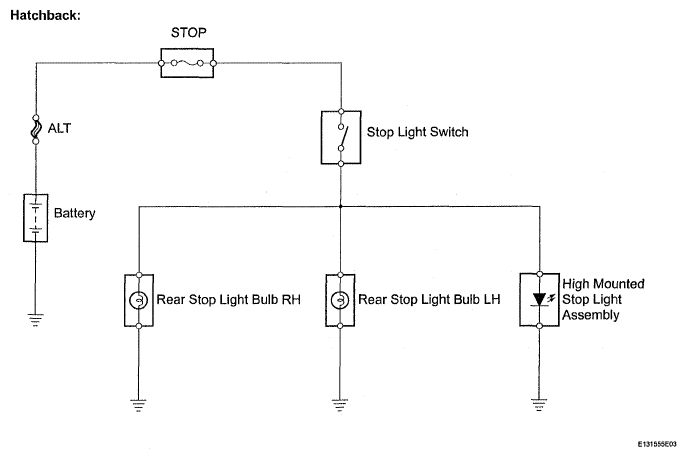

Fig 1: Stop Light Switch Circuit Diagram (Hatchback)
G04832658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

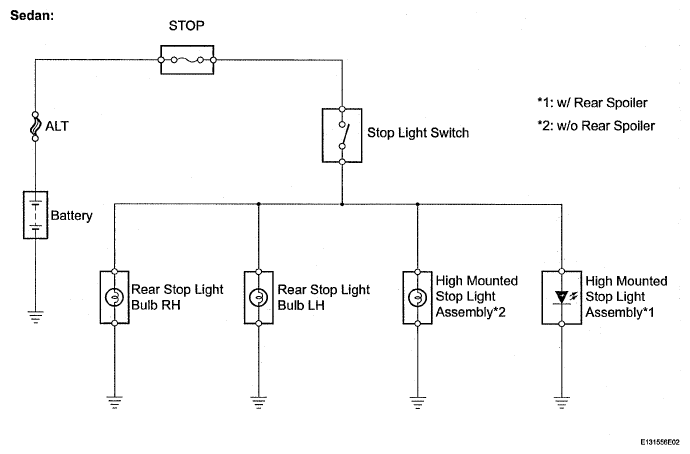

Fig 2: Stop Light Switch Circuit Diagram (Sedan)
G04832659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
