System Diagram

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

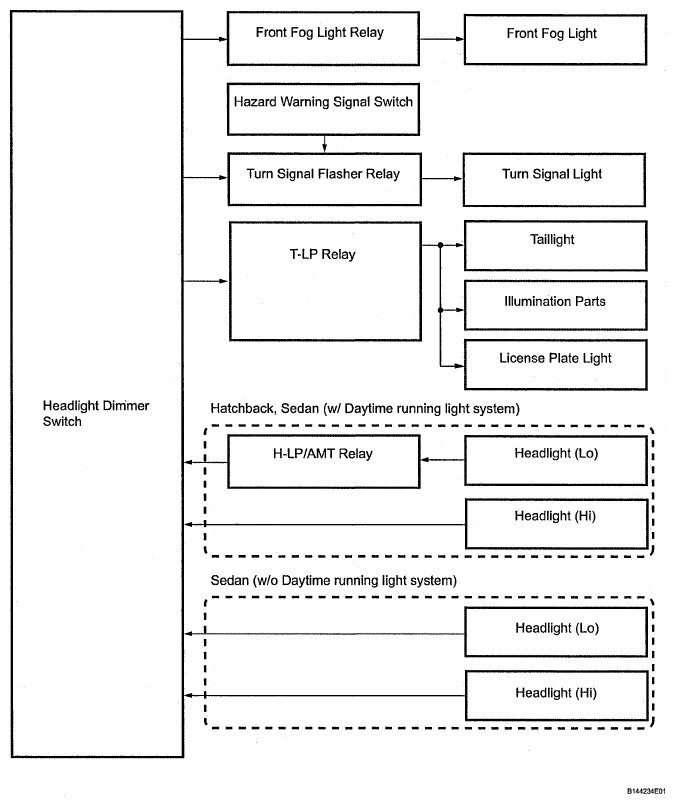

Fig 1: Lighting System Diagram (1 Of 4)
G04832652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

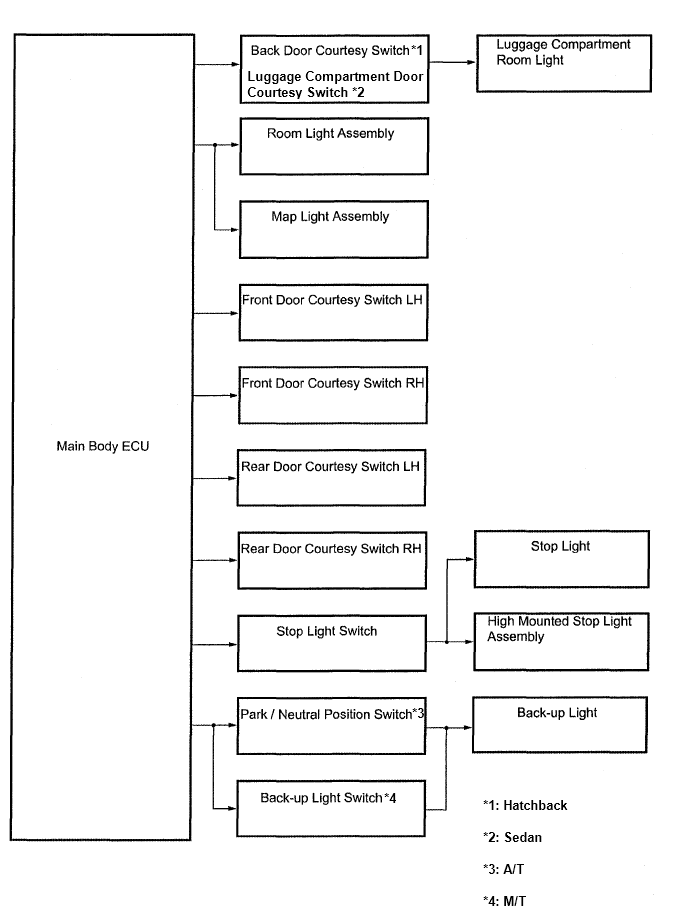

Fig 2: Lighting System Diagram (2 Of 4)
G04832653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Lighting System Diagram (3 Of 4)
G04832654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

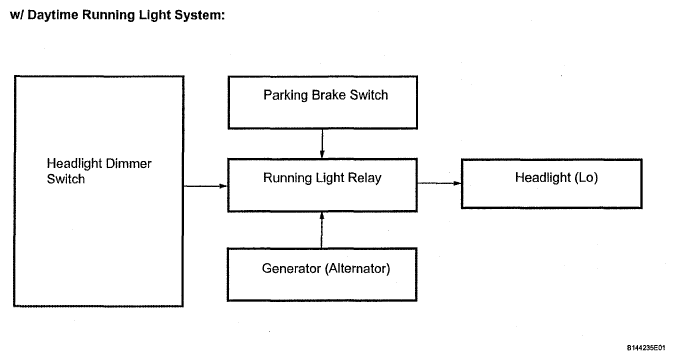

Fig 4: Lighting System Diagram (4 Of 4)
G04832655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
