System Diagram

WARNING: This page is about a different car, the 2008 Toyota FJ Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

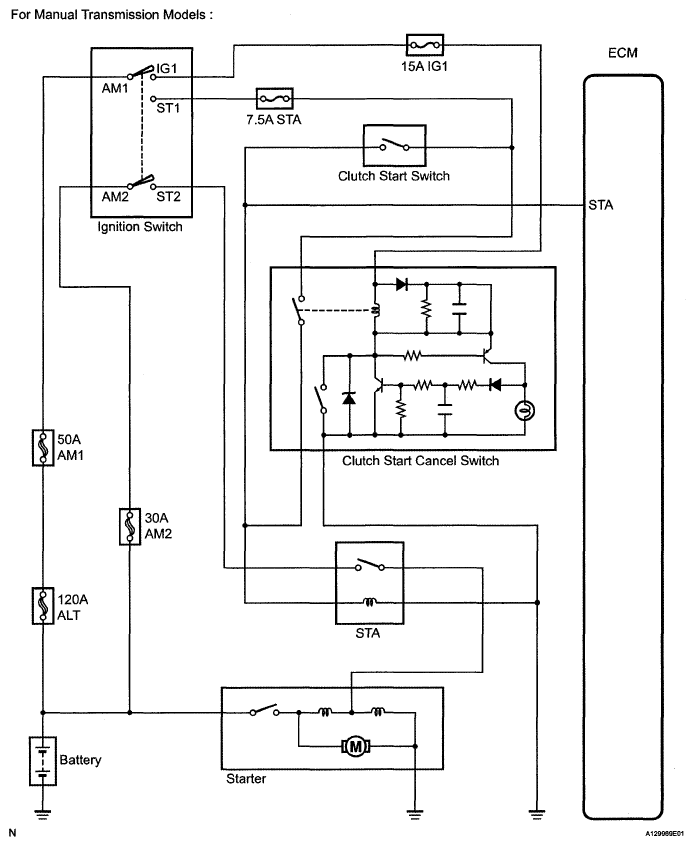

Fig 1: Identifying Starting System Diagram (For Manual Transmission Models)
G05109926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

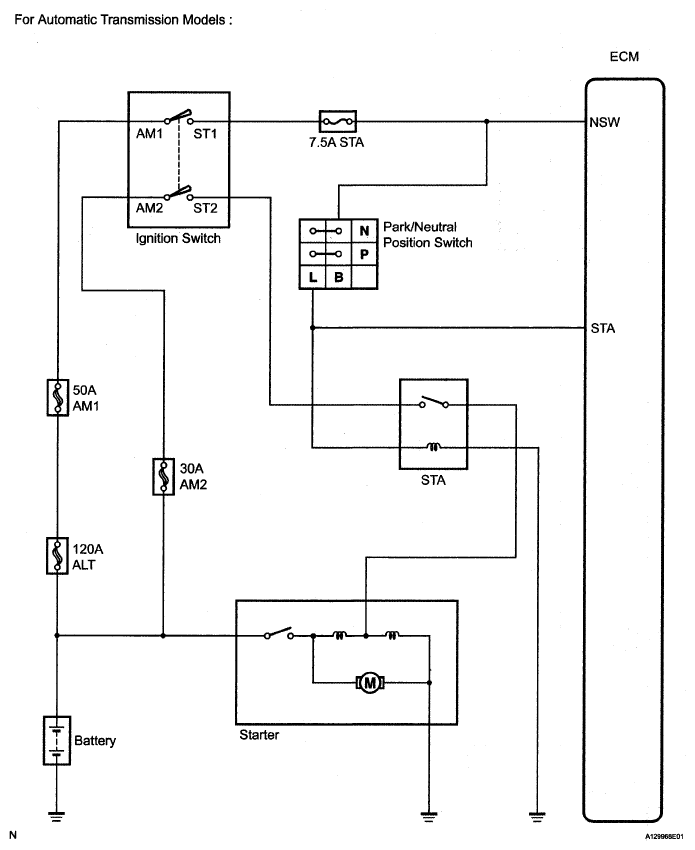

Fig 2: Identifying Starting System Diagram (For Automatic Transmission Models)
G05109927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
