Radio Receiver: Components

WARNING: This page is about a different car, the 2008 Toyota FJ Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

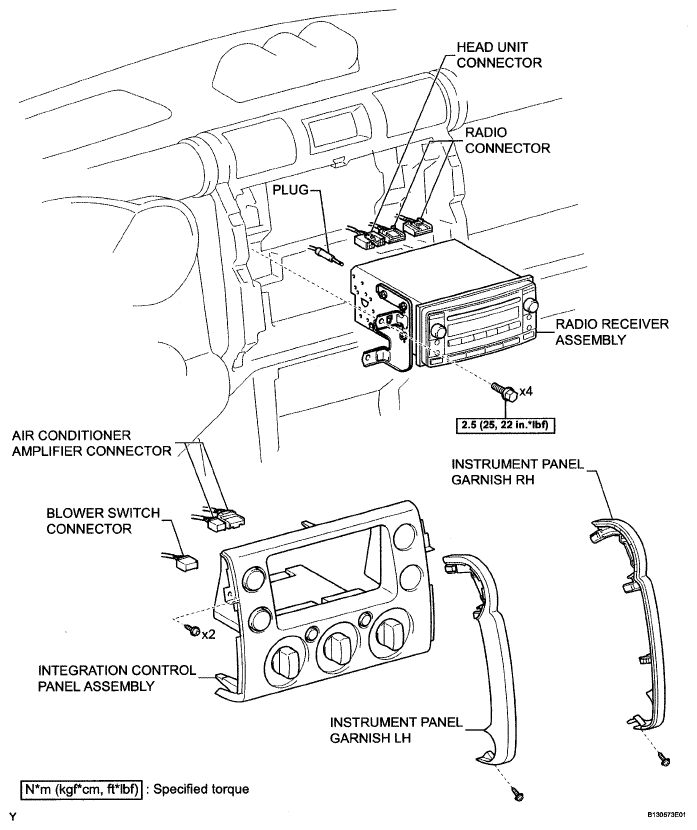

Fig 1: Radio Receiver Replacement Components With Torque Specifications (1 Of 2)
G05114072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

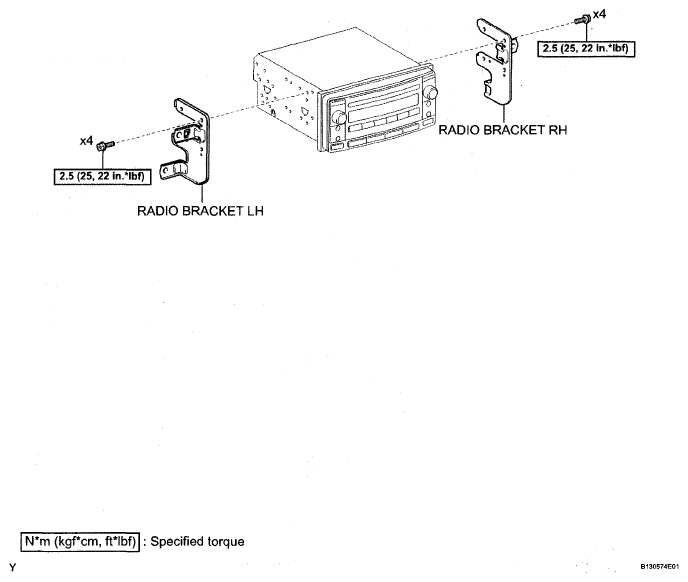

Fig 2: Radio Receiver Replacement Components With Torque Specifications (2 Of 2)
G05114073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
