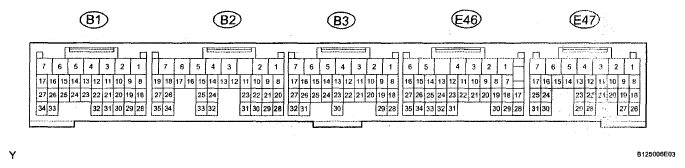

Terminals Of ECM
WARNING: This page is about a different car, the 2008 Toyota FJ Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK ECM
- Measure the voltages of the wire harness side connectors.
Standard voltage:
STANDARD VOLTAGESymbols (Terminals No.) Wiring Color Terminal Description Condition Specified Condition TC (E47-23) - E1 (B3-1) P-L - BR DTC output signal Ignition switch ON 11 to 14 V TC (E47-23) - E1 (B3-1) P-L - BR DTC output signal Ignition switch ON Connect terminals TC and CG of DLC3 Below 2 V ST1 - (E47-16) - E1 (B3-1) R-L - BR Cruise cancel input signal Ignition switch ON Depress brake pedal Below 1 V ST1 - (E47-16) - E1 (B3-1) R-L - BR Cruise cancel input signal Ignition switch ON Release brake pedal 11 to 14 V STP (E47-15) - E1 (B3-1) G-Y - BR Stop light switch input signal Ignition switch ON Depress brake pedal 11 to 14V STP (E47-15) - E1 (B3-1) G-Y - BR Stop light switch input signal Ignition switch ON Release brake pedal Below 1 V CCS (E46-2) - E1 (B3-1) L-B - BR Cruise control main switch output signal Ignition switch ON 11 to 14 V CCS (E46-2) - E1 (B3-1) L-B - BR Cruise control main switch output signal Ignition switch ON CANCEL switch held ON 6.6 to 10.1 V CCS (E46-2) - E1 (B3-1) L-B - BR Cruise control main switch output signal Ignition switch ON -/SET switch held ON 4.5 to 7.1 V CCS (E46-2) - E1 (B3-1) L-B - BR Cruise control main switch output signal Ignition switch ON +/RES switch held ON 2.3 to 4.5 V CCS (E46-2) - E1 (B3-1) L-B - BR Cruise control main switch output signal Ignition switch ON MAIN switch held ON Below 1 V E1 (B3-1) - Body ground BR - Body ground Ground Always Below 1 V PI (E46-18) - E1 (B3-1) P-G - BR Cruise main indicator light input signal Ignition switch ON Cruise control main switch held ON 0 to 3V PI (E46-18) - E1 (B3-1) P-G - BR Cruise main indicator light input signal Ignition switch ON Cruise control main switch held OFF 11 to 14 V D (E46-21) - E1 (B3-1) L-B - BR Clutch switch input signal Ignition switch ON Depress clutch pedal Below 1 V D (E46-21) - E1 (B3-1) L-B - BR Clutch switch input signal Ignition switch ON Release clutch pedal 11 to 14 V If the result is not as specified, there may be a malfunction on the wire harness side.
- Measure the voltages of the wire harness side connectors.
