Inspection Procedure

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT RADIO RECEIVER ASSEMBLY
    1. Disconnect the E62 and E64* receiver connectors.
    2. Measure the resistance of the receiver.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Specified Condition
      E62-S (ATX+) - E62-15 (ATX-) 60 to 80 Ω
      E64-9 (TXM+) - E64-10 (TXM-)* 60 to 80 Ω
      HINT:
      *: w/ Rear seat entertainment system

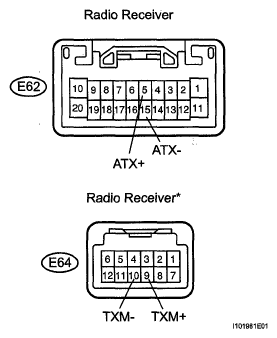

    3. Fig 1: Identifying E62 And E64 Receiver Connectors
      G05586317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE RADIO RECEIVER ASSEMBLY

    OK: Go to Next Step

  2. CHECK WIRE HARNESS (RADIO RECEIVER - STEREO COMPONENT AMPLIFIER)
    1. Disconnect the E62 receiver connector.
    2. Disconnect the L13 amplifier connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Specified Condition
      E62-5 (ATX+) - L13-8 (TX+) Below 1 Ω
      E62-15 (ATX-) - L13-7 (TX-) Below 1 Ω
      E62-5 (ATX+) - Body ground 10 kΩ or higher
      E62-15 (ATX-) - Body ground 10 kΩ or higher

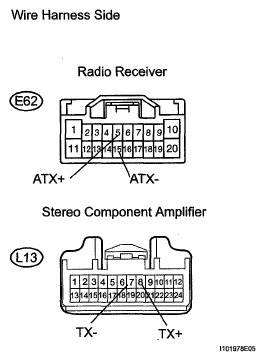

    4. Fig 2: Identifying E62 And L13 Connectors Terminals
      G05586318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: Go to Next Step

  3. CHECK AUDIO SYSTEM
    1. Check the audio system.

      Result

      RESULT CHART

      Result Proceed to
      w/ Rear seat entertainment system A
      w/o Rear seat entertainment system B

    B: PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE

    A: Go to Next Step

  4. CHECK WIRE HARNESS (RADIO RECEIVER - TELEVISION DISPLAY)
    1. Disconnect the E64 receiver connector.
    2. Disconnect the L16 display connector.
    3. Measure the voltage and resistance of the wire harness side connectors.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Specified Condition
      E64-9 (TXM+) - L16-14 (TX+) 2 to 3 V
      E64-10 (TXM-) - L16-13 (TX-) 2 to 3 V

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Specified Condition
      E64-9 (TXM+) - Body ground 10 kΩ or higher
      E64-10 (TXM-) - Body ground 10 kΩ or higher

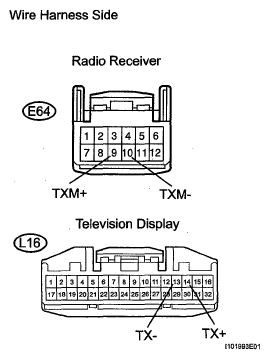

    4. Fig 3: Identifying L16 Display Connector And E64 Receiver Connector
      G05586319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE
