Inspection Procedure

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT FUSE (ACC, AMP)
1. Disconnect the AMP fuse from the engine room No, 1 relay block.
2. Disconnect the ACC fuse from the instrument panel junction block.
3. Measure the resistance of the fuses.
  Standard resistance: Below 1 Ω
NG: REPLACE FUSE

OK: Go to Next Step

CHECK HARNESS AND CONNECTOR (STEREO COMPONENT AMPLIFIER - BATTERY AND CONNECTOR)

Disconnect the L13, L14 and L15 amplifier connectors.

Measure the voltage and resistance of the wire harness side connectors.

Standard voltage

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
L13-12 (ACC) - Body ground	Ignition switch ACC	10 to 14 V
L15-1 (B) - Body ground	Always	10 to 14 V
L15-5 (+B2) - Body ground	Always	10 to 14 V

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Specified Condition
L14-7 (GND2) - Body ground	Below 1 Ω
L14-6 (GND) - Body ground	Below 1 Ω

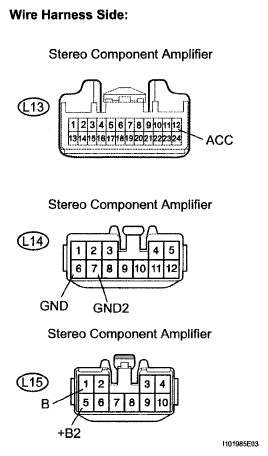

Fig 1: Identifying L13, L14 And L15 Amplifier Connectors

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
