Inspection Procedure
WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT COMBINATION METER (SPEEDOMETER)
- Drive the vehicle and check that the function of the speedometer on the combination meter is normal.
OK: Actual vehicle speed and the speed indicated on the speedometer are the same.
NG:GO TO METER / GAUGE SYSTEM
OK: Go to Next Step
- Drive the vehicle and check that the function of the speedometer on the combination meter is normal.

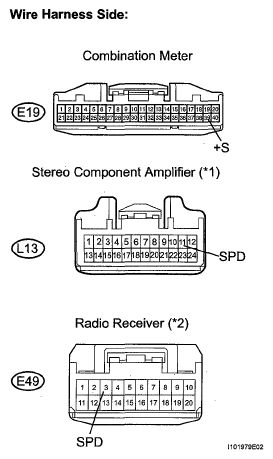

- CHECK HARNESS AND CONNECTOR (COMBINATION METER - RADIO RECEIVER, STEREO COMPONENT AMP.)
- Disconnect the E19 meter connector.
- Disconnect the L13 (*1) amplifier or E49 (*2) receiver connector.
- Measure the resistance of the wire harness side connectors.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Specified Condition E19-39 (+S) - L13-11 (SPD) (*1) Below 1 Ω E19-39 (+S) - E49-3 (SPD) (*2) Below 1 Ω HINT:
*1: for Premium sound models
*2: for Standard models
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
