Height Control Sensor: Installation

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL HEIGHT CONTROL SENSOR
1. 2WD:
  1. Install the height control sensor with the 2 bolts.

    Fig 1: Identifying Height Control Sensor (2WD)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. 4WD:
  1. Install the height control sensor with the 2 bolts.

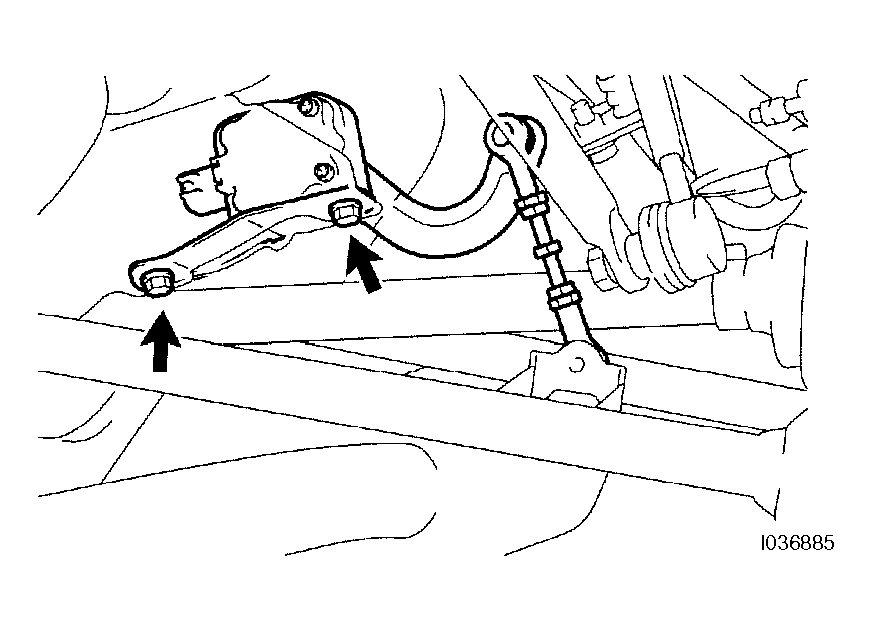

    Fig 2: Identifying Height Control Sensor (4WD)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the height control sensor link with the nut.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
4. Connect the connector.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
(See INITIALIZATION )
VEHICLE PREPARATION FOR HEADLIGHT AIM (See ADJUSTMENT )
PREPARATION FOR HEADLIGHT AIM (Using a tester) (See ADJUSTMENT )
PREPARATION FOR HEADLIGHT AIM (Using a screen) (See ADJUSTMENT )
HEADLIGHT AIMING INSPECTION (See ADJUSTMENT )
HEADLIGHT AIMING ADJUSTMENT (See ADJUSTMENT )

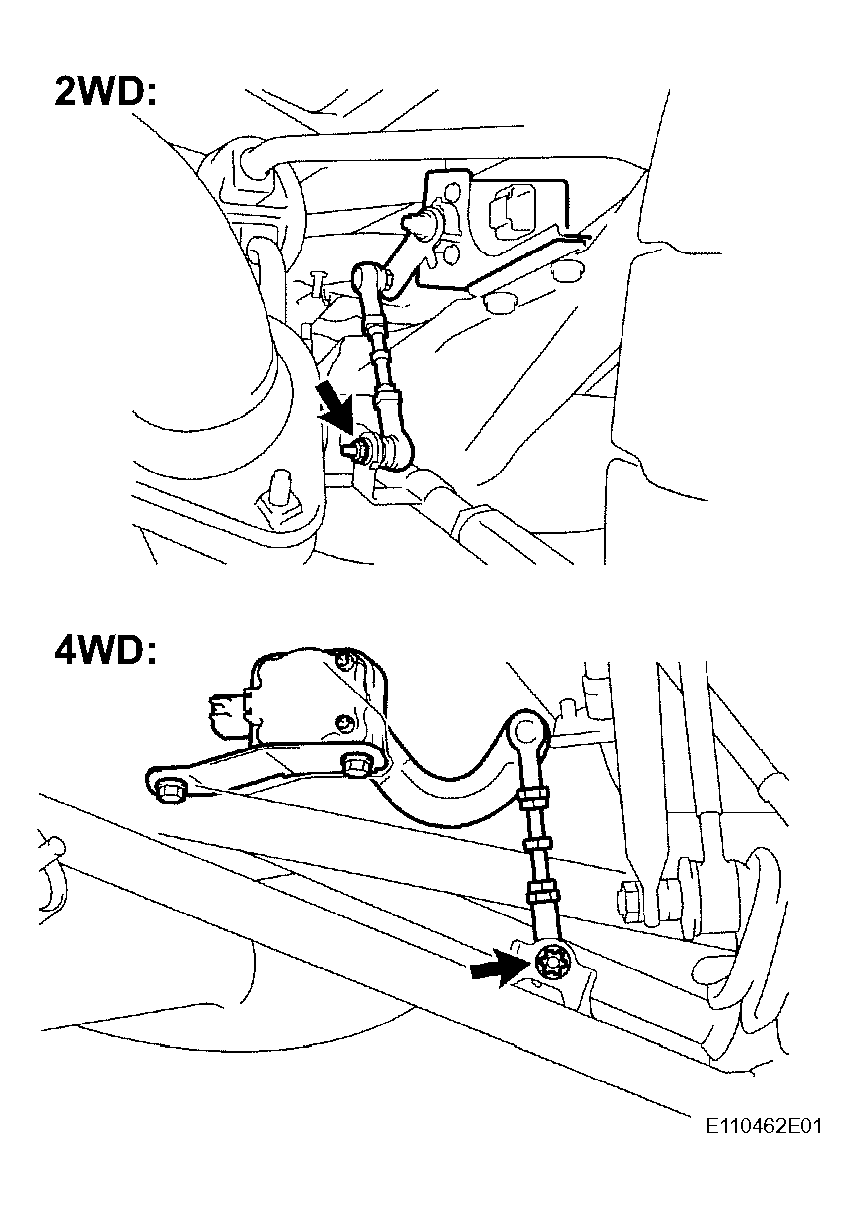

Fig 3: Identifying Height Control Sensor Link (2WD And 4WD)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
