Height Control Sensor: Removal

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
(See AIRBAG SYSTEM )
REMOVE HEIGHT CONTROL SENSOR
1. Disconnect the connector.
2. Remove the nut and separate the height control sensor link.

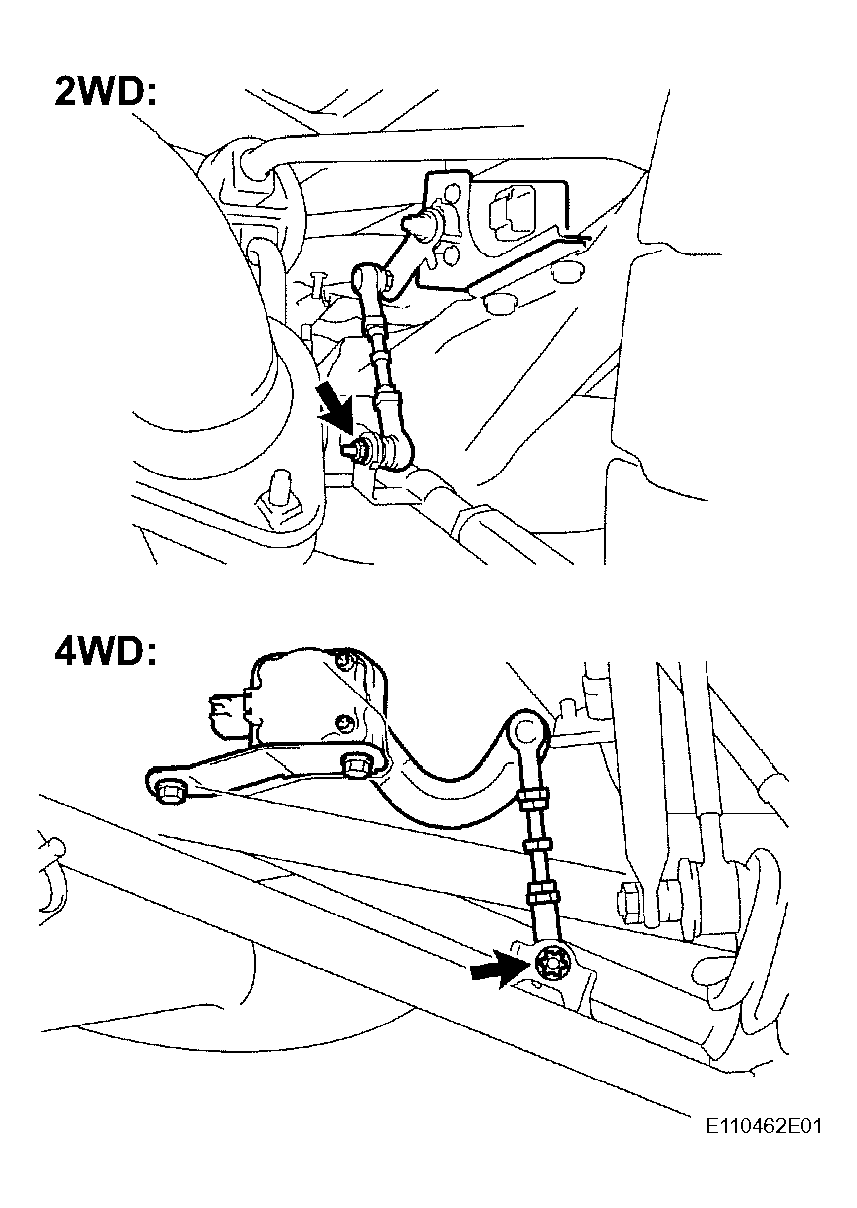

  Fig 1: Separating Height Control Sensor Link (2WD And 4WD)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. 2WD:
  1. Remove the 2 bolts and the height control sensor.

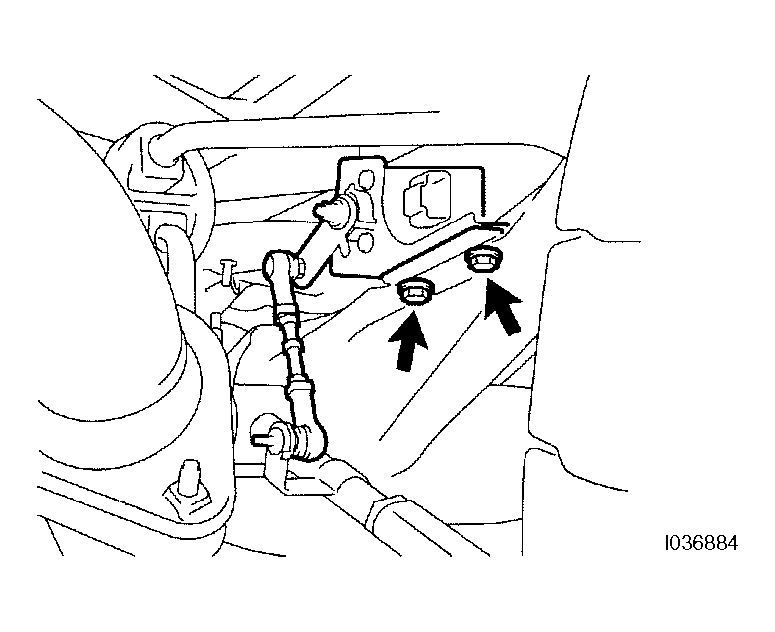

    Fig 2: Identifying Height Control Sensor (2WD)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. 4WD:
  1. Remove the 2 bolts and the height control sensor.

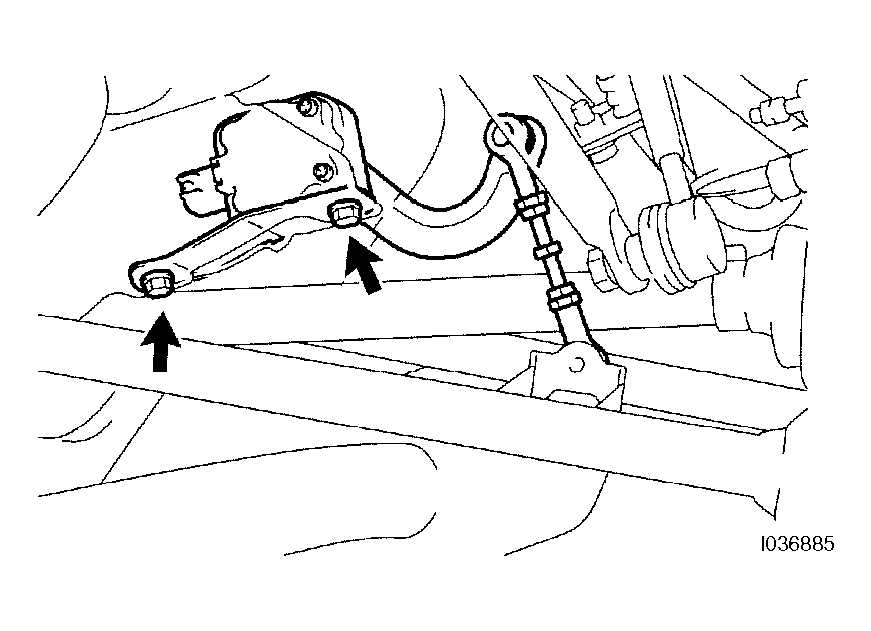

    Fig 3: Identifying Height Control Sensor (4WD)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
