Inspection Procedure

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

READ VALUE OF TECHSTREAM

Connect the Techstream to the DLC3.
Turn the ignition switch to ON.
Turn the Techstream on.
Enter the following menus: Body Electrical / Main Body / Data List.

Read the display on the Techstream.

Main Body (Main Body ECU)

MEASUREMENT ITEM/RANGE CHART

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
Dimmer SW	Headlight dimmer switch signal / ON or OFF	ON: Headlight dimmer switch is in HI or FLASH position OFF: Headlight dimmer switch is in LO position	-
Passing Light SW	Passing light switch signal / ON or OFF	ON: Headlight dimmer switch is in FLASH position OFF: Headlight dimmer switch is in except FLASH position	-
Front Fog Light SW	Front fog light switch signal / ON or OFF	ON: Front fog light switch is in ON position OFF: Front fog light switch is in OFF position	-
Head Light SW (Head)	Headlight control switch signal (HEAD) / ON or OFF	ON: Light control switch is in HEAD position OFF: Light control switch is in except HEAD position	-
Head Light SW (Tail)	Headlight control switch signal (TAIL)/ON or OFF	ON: Light control switch is in TAIL or HEAD position OFF: Light control switch is in except OFF position	-

OK:

Normal conditions listed above are displayed.

OK: PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE

NG: Go to next step

INSPECT HEADLIGHT DIMMER SWITCH

Remove the headlight dimmer switch.

Measure the resistance of the switch.

Standard resistance

STANDARD RESISTANCE

Tester Connection	Condition	Specified Condition
18 (T) - 12 (EL)	OFF	10 kΩ or higher
18 (T) - 12 (EL)	TAIL	Below 1 Ω
20 (H) - 12 (EL)	OFF	10 kΩ or higher
20 (H) - 12 (EL)	HEAD	Below 1 Ω
16 (HL) - 12 (EL)	HIGH or FLASH	10 kΩ or higher
16 (HL) - 12 (EL)	LOW	Below 1 Ω
11 (HU) - 12 (EL)	LOW or FLASH	10 kΩ or higher
11 (HU) - 12 (EL)	HIGH	Below 1 Ω
17 (HF) - 12 (EL)	LOW or HIGH	10 kΩ or higher
17 (HF) - 12 (EL)	FLASH	Below 1 Ω
4 (BFG) - 3 (LFG)	Fog light switch OFF	10 kΩ or higher
4 (BFG) - 3 (LFG)	Fog light switch ON	Below 1 Ω

Fig 1: Identifying Headlight Dimmer Switch Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE HEADLIGHT DIMMER SWITCH ASSEMBLY

OK: Go to next step

CHECK WIRE HARNESS (MAIN BODY ECU - DIMMER SWITCH AND BODY GROUND)

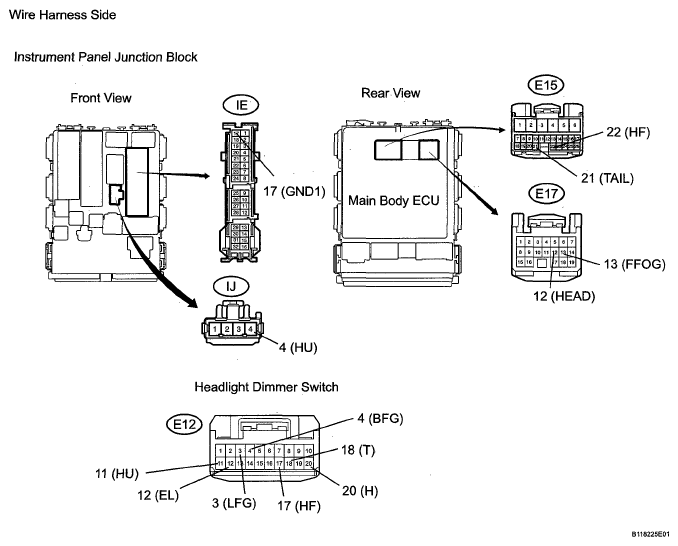

Fig 2: Identifying Main Body ECU And Dimmer Switch Connector Terminals

Disconnect the E12 headlight dimmer switch connector.
Disconnect the IE and IJ instrument panel junction block connectors.
Disconnect the E15 and E17 main body ECU connectors.

Measure the resistance of the wire harness side connectors.

Standard resistance

STANDARD RESISTANCE

Tester Connection	Specified Condition
E15-22 (HF) - E12-17 (HF)	Below 1 Ω
E15-22 (HF) or E12-17 (HF) - Body ground	10 kΩ or higher
E15-21 (TAIL) - E12-18 (T)	Below 1 Ω
E15-21 (TAIL) or E12-18 (T) - Body ground	10 kΩ or higher
E17-12 (HEAD) - E12-20 (H)	Below 1 Ω
E17-12 (HEAD) or E12-20 (H) - Body ground	10 kΩ or higher
E17-13 (FFOG) - E12-4 (BFG)	Below 1 Ω
E17-13 (FFOG) or E12-4 (BFG) - Body ground	10 kΩ or higher
IJ-4 (HU) - E12-11 (HU)	Below 1 Ω
IJ-4 (HU) or E12-11 (HU) - Body ground	10 kΩ or higher
E12-12 (EL) - Body ground	Below 1 Ω
El 2-3 (LFG) - Body ground	Below 1 Ω
IE-17 (GND1) - Body ground	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: REPLACE INSTRUMENT PANEL JUNCTION BLOCK (MAIN BODY ECU)
