Inspection Procedure

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Turn the ignition switch OFF before measuring the resistances of the main wire and branch wire.
  • After the ignition switch is turned OFF, check that the key reminder warning system and light reminder warning system are not in operation.
  • Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the ignition switch, any other switches or the doors. If doors need to be opened in order to check connectors, open the doors and leave them open.

HINT:

Operating the ignition switch, any switches or any doors triggers related ECU and sensor communication with the CAN, which causes resistance variation.

  1. CHECK WIRE HARNESS (ECM - BATTERY AND BODY GROUND)
    1. Disconnect the A9 and B30 ECM connectors.

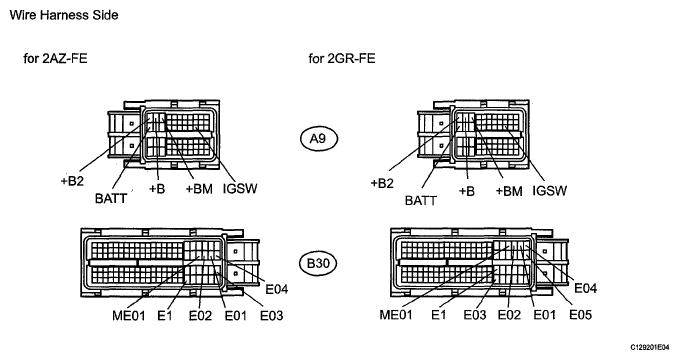

      Fig 1: Identifying A9 And B30 ECM Connectors
      G05586603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance of the wire harness side connector.

      Standard resistance:

      for 2AZ-FE

      RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      B30-104 (E1) - Body ground Below 1 Ω
      B30-45 (E01) - Body ground Below 1 Ω
      B30-44 (E02) - Body ground Below 1 Ω
      B30-86 (E03) - Body ground Below 1 Ω
      B30-46 (E04) - Body ground Below 1 Ω
      B30-43 (ME01) - Body ground Below 1 Ω

      for 2GR-FE

      RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      B30-81 (E1) - Body ground Below 1 Ω
      B30-22 (E01) - Body ground Below 1 Ω
      B30-21 (E02) - Body ground Below 1 Ω
      B30-104 (E03) - Body ground Below 1 Ω
      B30-23 (E04) - Body ground Below 1 Ω
      B30-46 (E05) - Body ground Below 1 Ω
      B30-20 (ME01) - Body ground Below 1 Ω
    3. Measure the voltage of the wire harness side connector.

      Standard voltage

      VOLTAGE SPECIFICATION

      Tester Connection Condition Specified Condition
      A9-1 (+B2) - Body ground When battery's positive (+) voltage is applied to terminal MREL 10 to 14 V
      A9-2 (+B) - Body ground When battery's positive (+) voltage is applied to terminal MREL 10 to 14 V
      A9-3 (+BM) - Body ground Always 10 to 14 V
      A9-20 (BATT) - Body ground Always 10 to 14 V
      A9-28 (IGSW) - Body ground Ignition switch ON 10 to 14 V

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: REPLACE ECM
