Front Speed Sensor: Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the LH side and RH side.
The procedures listed below are for the LH side.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE FRONT WHEEL
REMOVE FRONT FENDER LINER LH
REMOVE FRONT SPEED SENSOR LH
1. Disconnect the sensor connector.

  Fig 1: Locating Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

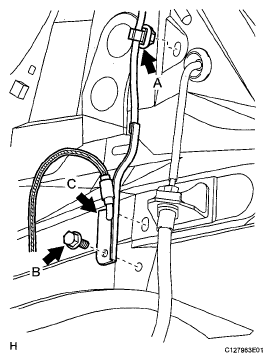

2. Remove the sensor clip (labeled A), bolt (labeled B) and sensor clamp (labeled C).

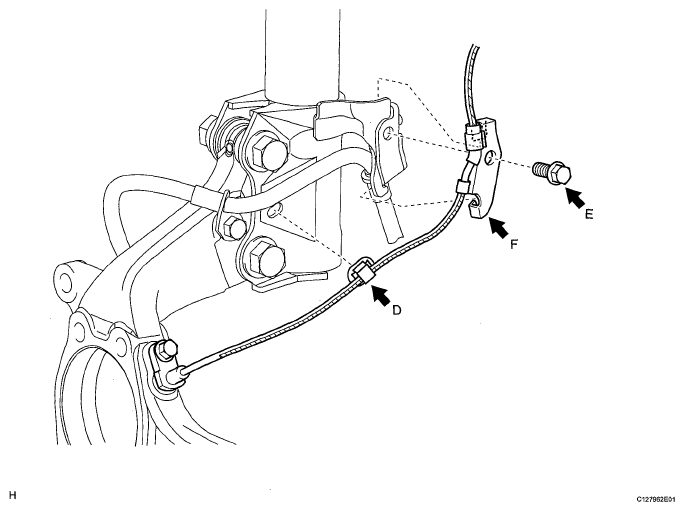

3. Remove the sensor clip (labeled D), bolt (labeled E) and sensor clamp (labeled F).

  Fig 3: Locating Sensor Clip (Labeled D), Bolt (Labeled E) And Sensor Clamp (Labeled F)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the bolt and sensor body from the knuckle.
  NOTE: Keep the sensor tip and sensor installation hole free from foreign matter.

  Fig 4: Locating Bolt And Sensor Body From Knuckle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
