System Diagram

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

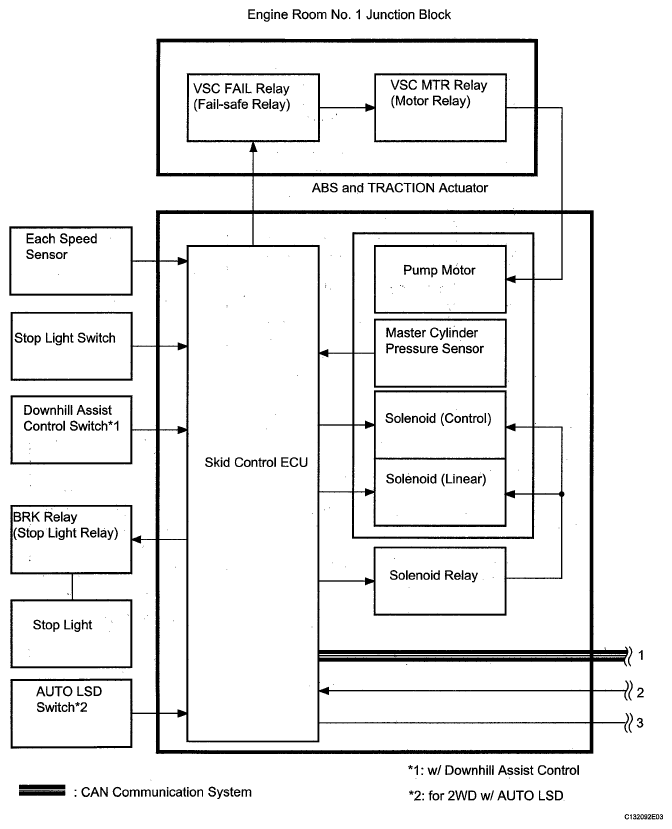

Fig 1: identifying Vehicle Stability Control System Diagram (1 Of 2)
G05584958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

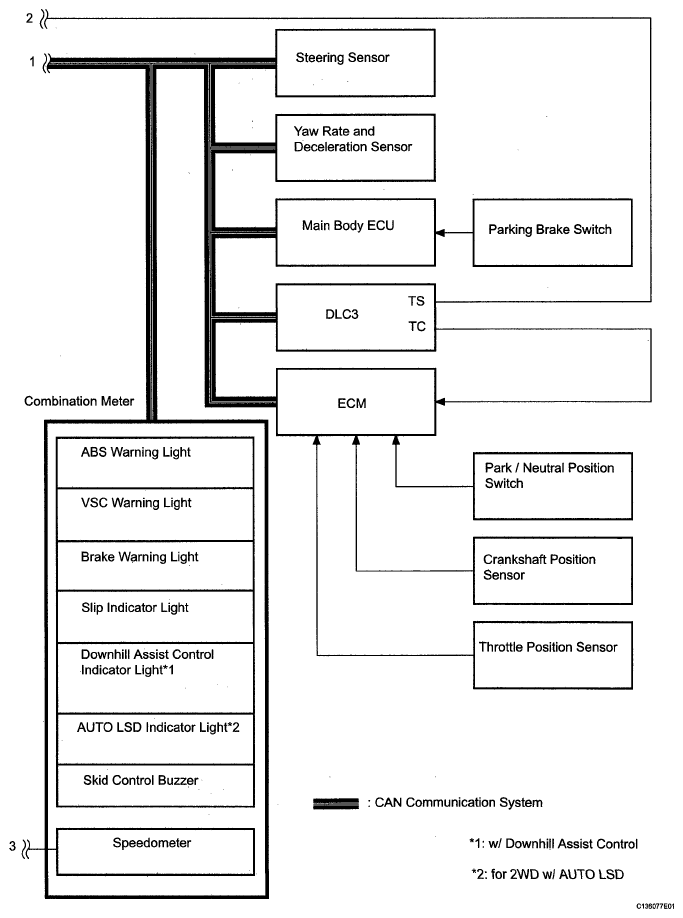

Fig 2: Identifying Vehicle Stability Control System Diagram (2 Of 2)
G05584959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
