Road Test

WARNING: This page is about a different car, the 2009 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

PROBLEM SYMPTOM CONFIRMATION
HINT:

The dynamic radar cruise control system has two cruise control modes: the constant speed control mode and vehicle-to-vehicle distance control mode.
- The vehicle-to-vehicle distance control mode is always selected when starting up the dynamic radar cruise control system.
- Operation of the constant speed control mode is the same as that for a conventional cruise control system.

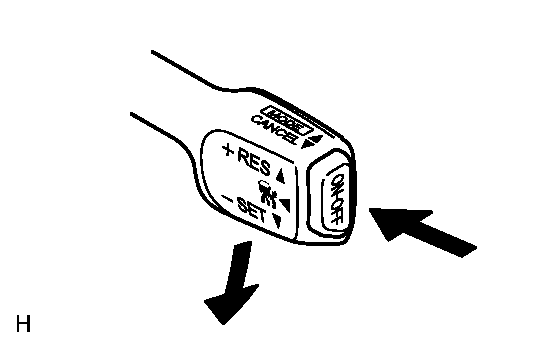

1. Inspect the SET function.

  Fig 1: Inspecting SET Function
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Turn the main switch on.
  2. Drive at the required speed (43 km/h (27 mph) or higher).
  3. Push the cruise control main switch to - (COAST)/SET.
  4. After releasing the switch, check that the vehicle cruises at the set speed.

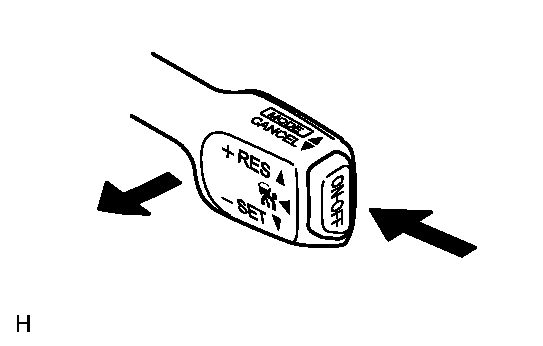

2. Inspect the + (ACCEL) function.

  Fig 2: Inspecting + (ACCEL) Function
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Turn the main switch on.
  2. Drive at the required speed (43 km/h (27 mph) or higher).
  3. Push the cruise control main switch to - (COAST)/SET.
  4. Check that vehicle speed increases while the cruise control main switch is pushed to + (ACCEL)/RES (RESUME), and that the vehicle cruises at the newly set speed when the switch is released.
  5. Push the cruise control main switch to + (ACCEL)/RES (RESUME) and then release it immediately. Check that vehicle speed increases* (tap-up control).
    HINT:

    *: Constant speed control mode: increases by 1.6 km/h (1.0 mph); vehicle-to-vehicle distance control mode: increases by 5 km/h (3 mph)
3. Inspect the - (COAST) function.

  Fig 3: Inspecting - (COAST) Function
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Turn the main switch on.
  2. Drive at the required speed (43 km/h (27 mph) or higher).
  3. Push the cruise control main switch to - (COAST)/SET.
  4. Check that vehicle speed decreases while the cruise control main switch is pushed to - (COAST)/SET, and the vehicle cruises at the newly set speed when the switch is released.
  5. Push the cruise control main switch to - (COAST)/SET, and then release it immediately. Check that vehicle speed decreases* (tap-down control).
    HINT:

    *: Constant speed control mode: decreases by 1.6 km/h (1.0 mph); vehicle-to-vehicle distance control mode: decreases by 5 km/h (3 mph).

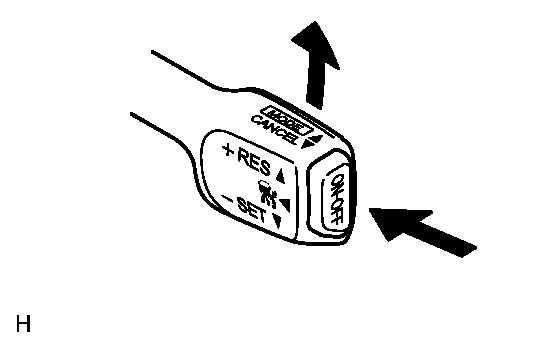

4. Inspect the CANCEL function.

  Fig 4: Inspecting CANCEL Function
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Turn the main switch on.
  2. Drive at the required speed (43 km/h (27 mph) or higher).
  3. Push the cruise control main switch to - (COAST)/SET.
  4. When performing any one of the following, check that the cruise control system is canceled and that the normal driving mode is reset.
    - Depressing the brake pedal
    - The shift lever is moved from D to N or M
    - Selecting the D3, D2 or D1 range with the shift lever in D
    - Turning the main switch off
    - Pulling the cruise control main switch to CANCEL
5. Inspect the RES (RESUME) function.

  Fig 5: Inspecting RES (RESUME) Function
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Turn the main switch on.
  2. Drive at the required speed (43 km/h (27 mph) or higher).
  3. Push the cruise control main switch to - (COAST)/SET.
  4. Cancel the cruise control system by performing any of the above operations (other than turning the main switch off).
  5. After pushing the cruise control main switch to + (ACCEL)/RES (RESUME) at a driving speed of more than 40 km/h (25 mph), check that the vehicle resumes the speed set prior to the cancellation.
    HINT:

    The stored vehicle speed is retained even if vehicle speed drops below 40 km/h (25 mph) once. The previously stored vehicle speed can be resumed by pushing the cruise control main switch to + (ACCEL)/RES (RESUME) when vehicle speed returned to approximately 40 km/h (25 mph) or more.
