Cruise Control Main Switch: Installation

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL CRUISE CONTROL MAIN SWITCH
1. Install the cruise control main switch with the 2 screws.
  Torque: 2.4 N*m (25 kgf*cm, 21 in.*lbf)
2. Connect the connector.
INSTALL STEERING PAD (See REMOVAL )
INSTALL STEERING WHEEL NO.3 COVER LOWER (See INSTALLATION )
INSTALL STEERING WHEEL NO.2 COVER LOWER (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSPECT STEERING PAD (See STEERING PAD )

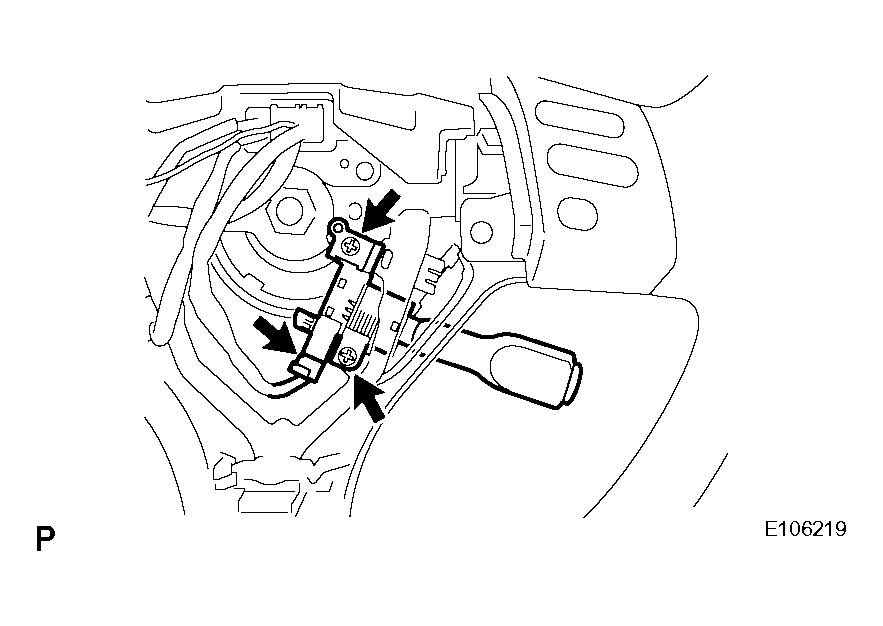

Fig 1: Identifying Cruise Control Main Switch With Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PERFORM INITIALIZATION
NOTE: Some systems need initialization when disconnecting the cable from the negative battery terminal. (See INITIALIZATION )
INSPECT SRS WARNING LIGHT
(See DIAGNOSIS SYSTEM )
