Distance Control Ecu: Installation

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL SKID CONTROL BUZZER ASSEMBLY
1. Engage the clamp to install the skid control buzzer assembly.

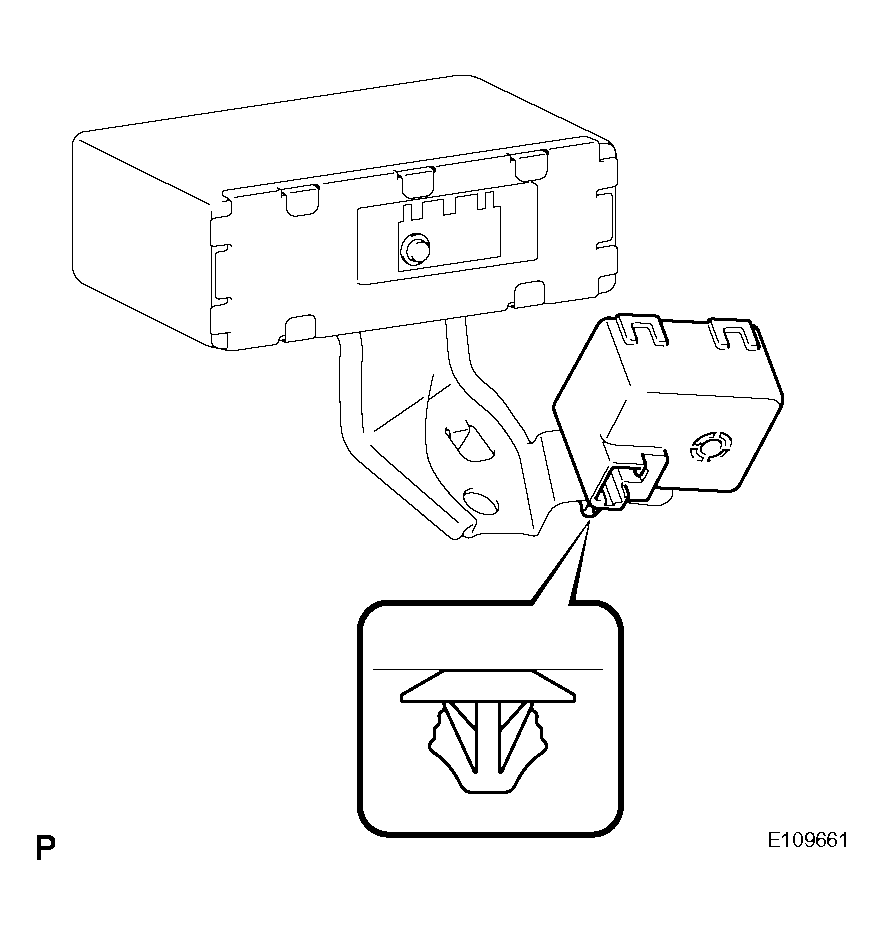

  Fig 1: Engaging Clamp To Install Skid Control Buzzer Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DISTANCE CONTROL ECU ASSEMBLY WITH SKID CONTROL BUZZER ASSEMBLY
1. Install the distance control ECU assembly with skid control buzzer assembly with the bolt.
  NOTE: Do not install the distance control ECU assembly if it has been damaged or impacted in any way.

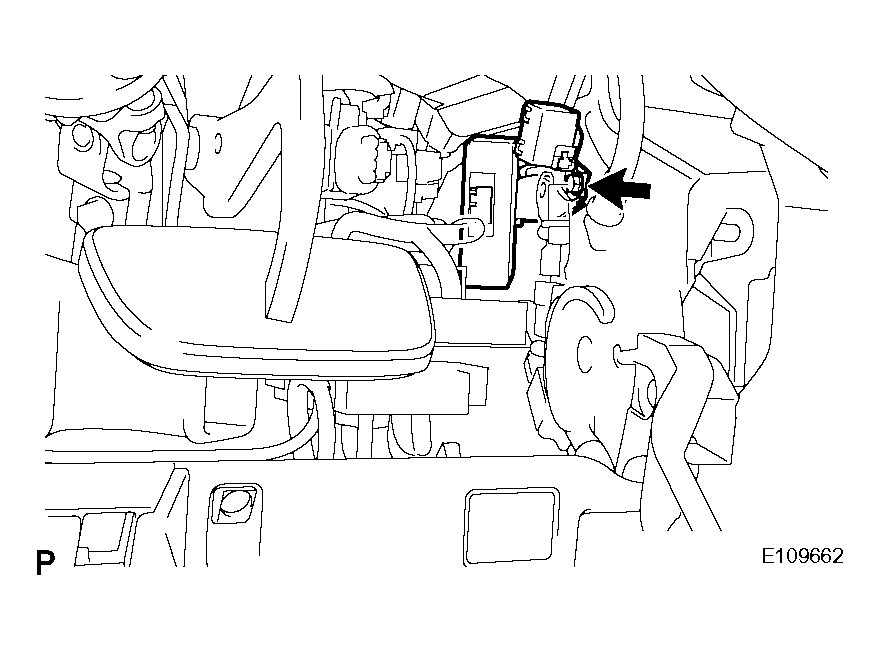

  Fig 2: Identifying Distance Control ECU Assembly With Skid Control Buzzer Assembly With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 2 connectors.
INSTALL HEADLIGHT LEVELING ECU ASSEMBLY (See REMOVAL )
INSTALL INSTRUMENT PANEL FINISH PANEL SUBASSEMBLY LOWER (See INSTALLATION )
INSTALL FRONT DOOR SCUFF LH PLATE (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
NOTE: Some systems need initialization when disconnecting the cable from the negative battery terminal. (See INITIALIZATION )

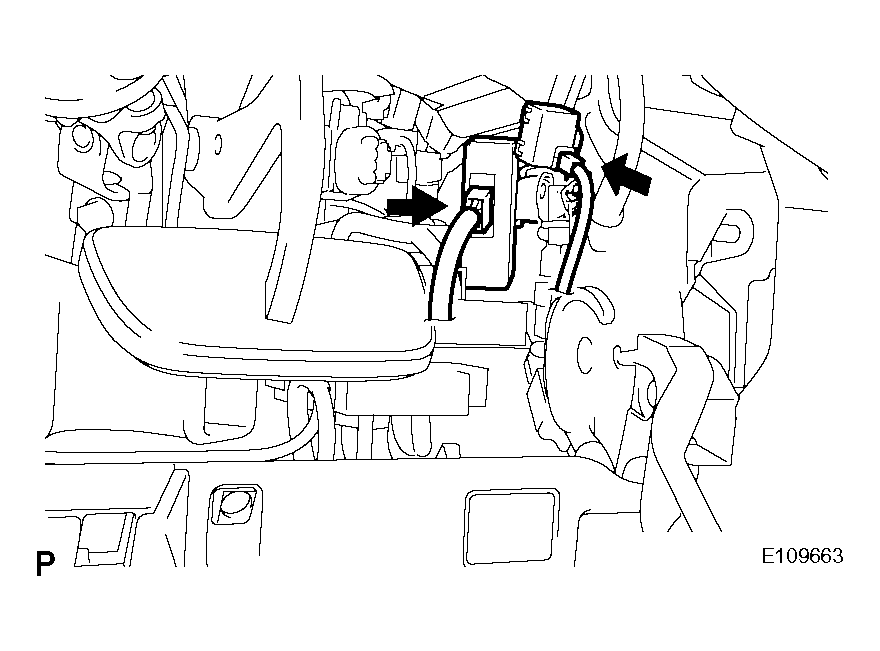

Fig 3: Identifying Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
